Interior Details

MAIN SALON

• “U” settee to starboard, 5” foam cushions, with storage and Sabre tool drawer beneath.
• High gloss folding table with integral handrail and cup holders.
• Sound deadening, soft headliner panels.
• Raised mates L-shaped settee to port of helm
• Counterbalanced stainless-steel door to cockpit

ENTERTAINMENT MEDIA

• Fusion Apollo Stereo System with Bluetooth. Controls at helm and cockpit, four speakers: two in the main salon, two in the cockpit.
• 10” Fusion Subwoofer
• Fusion Amplifier
• 50” LED TV in the main salon
• 32” LED TV in the master stateroom
• 32” LED TV in the forward stateroom
• HDMI cables run from each TV to the guest stateroom aft, below the helm.

WET BAR

• Solid surface countertop with sink and faucet to port.
• Ice maker beneath counter.
• Single drawer refrigerator beneath opposing starboard settee.

GALLEY & PANTRY

• Solid surface countertop.
• Stainless steel under mount sink with cover and pull-out faucet
• Soap dispenser
• (2) Two-drawer, All-In-One refrigeration appliances
• Touch control induction cooktop
• Multi-function convection microwave with stainless steel face
• Drawers and storage lockers below the counter.
• Built-in waste basket & recycle bin.
• Hull side deadlight over sink.

MASTER STATEROOM AMIDSHIPS

• Island berth athwartship layout with 9” foam mattress and laminated trim.
• Hull side deadlight over headboard
• “Borrowed light” from helm dash / windshield above.
• Panel passageway and closet doors
• (2) Opening portlights with screen panels
• Cherry hull ceilings.
• Drawers in foot & sides of berth.
• Drawers located in bulkhead aft of berth.
• (2) hanging lockers fore and aft of berth.
• Teak and holly sole.
• Sound deadening soft headliner panels.
• Sliding door to master head compartment.

MASTER HEAD

• Private access from master stateroom
• Custom tile in WC and shower sole
• Undermount sink
• Solid surface counter with bull nose.
• Vanity cabinet below sink
• Storage outboard
• Mirror above vanity, cherry framed
• Separate shower stall with clear swing door
• Electric shower sump pump
• Opening port to side deck
• Deck hatch with blind/screen overhead
• Ventilation blower
• Stainless steel towel bars

VIP/FORWARD STATEROOM

• Spacious island berth, with 9” mattress and laminated trim.
• Cherry hull ceilings.
• Drawers under berth, A/C return grille beside.
• Storage lockers, drawers, and shelves.
• Teak and holly sole.
• Sound deadening soft headliner panels
• Private access to the forward head and shower

VIP/FORWARD HEAD

• Undermount sink.
• Shower stall with seat and locker outboard.
• Electric shower sump pump.
• Storage lockers.
• Solid surface vanity top with bull nose.
• Towel bars
• Soap dispenser
• Cherry wood trimmed mirror over the sink.
• Ventilation blower.

UTILITY ROOM

• Work space below salon with work bench, drawers, and shelves
• Optional crew quarters with 6” berth mattress and head unit available.

DÉCOR

• Varnished cherry interior finish.
• Screens on all opening ports.
• Ocean Air screen/blinds on deck hatches.
• Pleated blinds on side windows and side door
• Drapes on curved aft windows
• Accord shades on opening ports except for the master stateroom
• Dovetailed, varnished maple drawer boxes

Exterior Details

HULL

• Modified deep “V” Planing hull design
• 16° deadrise at the transom, 23° deadrise amidships.
• ISO NPG white gelcoat w/vinylester backup resin.
• Bottom, topsides, and transom VIP resin infused biaxial E-glass with Corecell SAN foam core.
• Stringer system biaxial E-glass with foam core.
• Resin Infused E-glass swim platform with molded-in anti-skid surface.
• Hull side rubbing strakes.
• PVC rub rail with stainless steel cap.
• Painted (Urethane) double boot top.
• Gold recessed cove stripe.

DECK & HARDTOP COMPOSITE

• ISO NPG gelcoat.
• VIP resin infused biaxial E-glass with balsa core.
• Molded-in anti-skid deck surfaces.
• Flush, outward-opening, transom door with latch.
• Port & starboard anchor lockers with gasketed, latched lids.
• Large engine room access hatch in cockpit sole.
• Fender storage locker in starboard-aft cockpit sole.

DECK HARDWARE

• 1 1/4″ Diameter type 316 stainless steel perimeter rail system.
• (6) 12” Stainless steel cleats: two forward, four midship.
• (2) Stainless steel bollard cleats aft
• (2) Stainless 12” cleats on cockpit coaming on centerline
• (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off.
• Custom stainless steel bow pulpit with dual anchor roller.
• Quick anchor windlass, electric rope-chain type.
• Varnished teak flagstaff and socket on taffrail.
• Burgee staff on the bow pulpit.

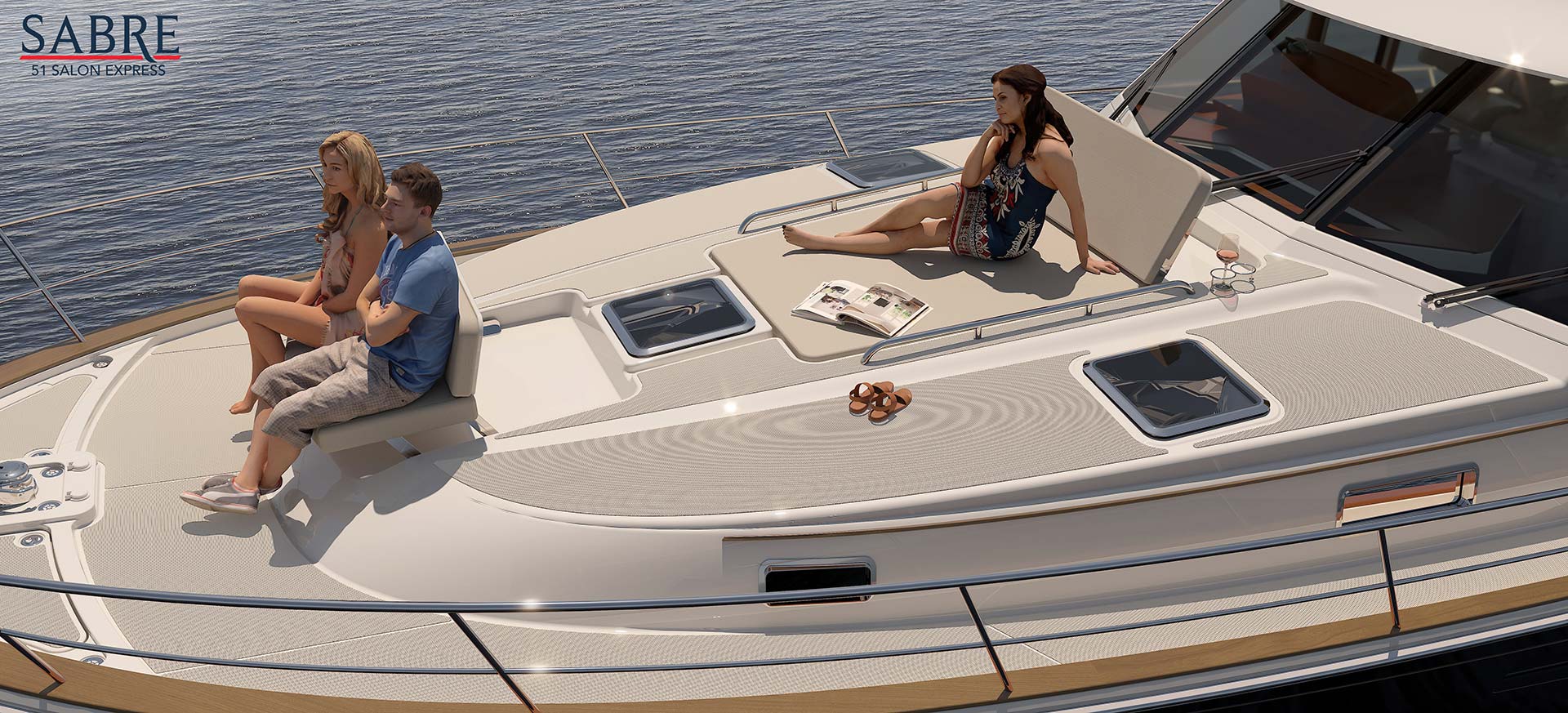

• (5) Low-profile stainless steel hatches w/screens.
• (2) Sliding pilothouse hatches w/screens (fwd.)
• (2) Single-glazed pilothouse lights (aft).
• Single-glazed salon windows.
• Custom stainless steel opening port lights.
• Teak cap rails.
• Teak cabin-side eyebrow.

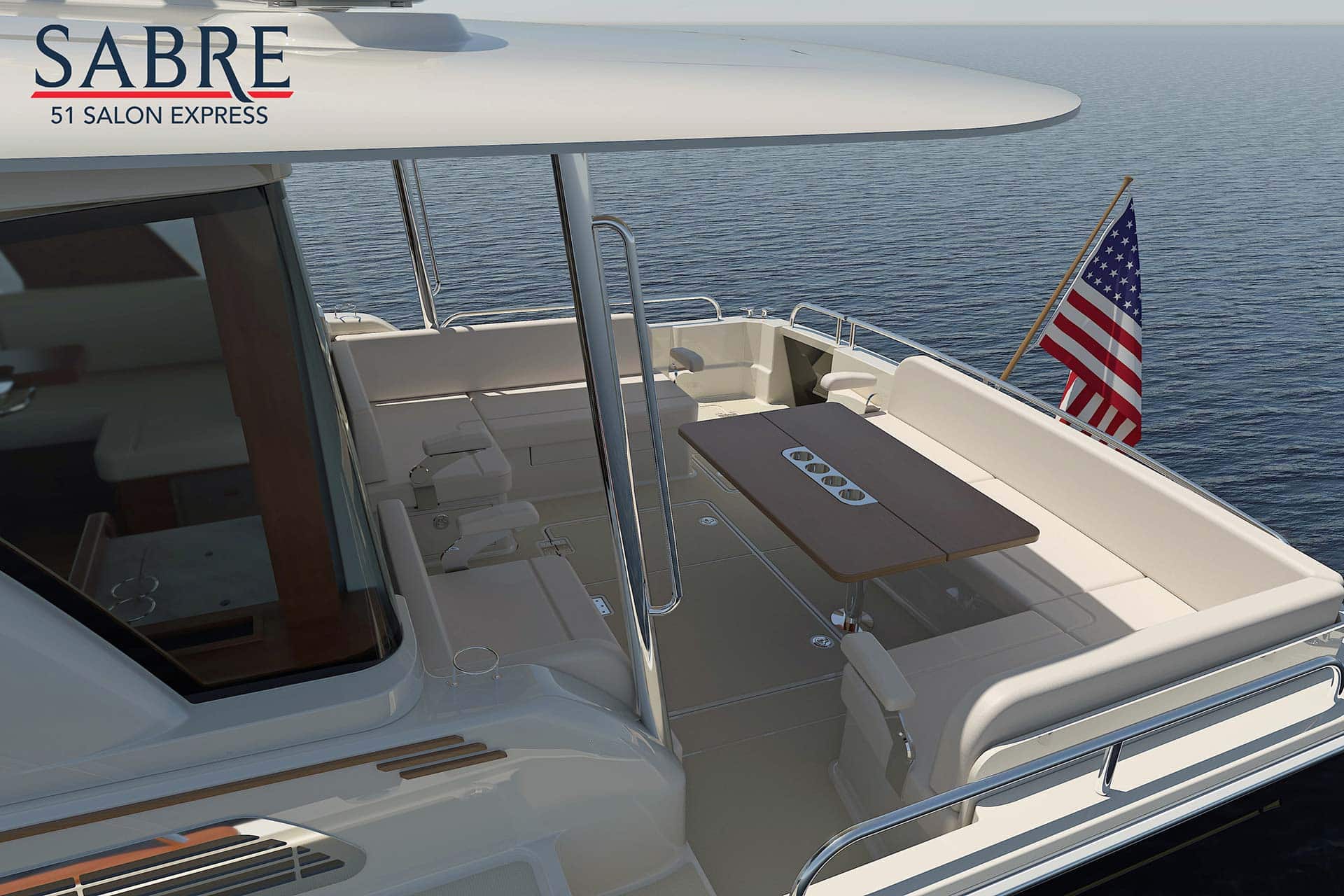

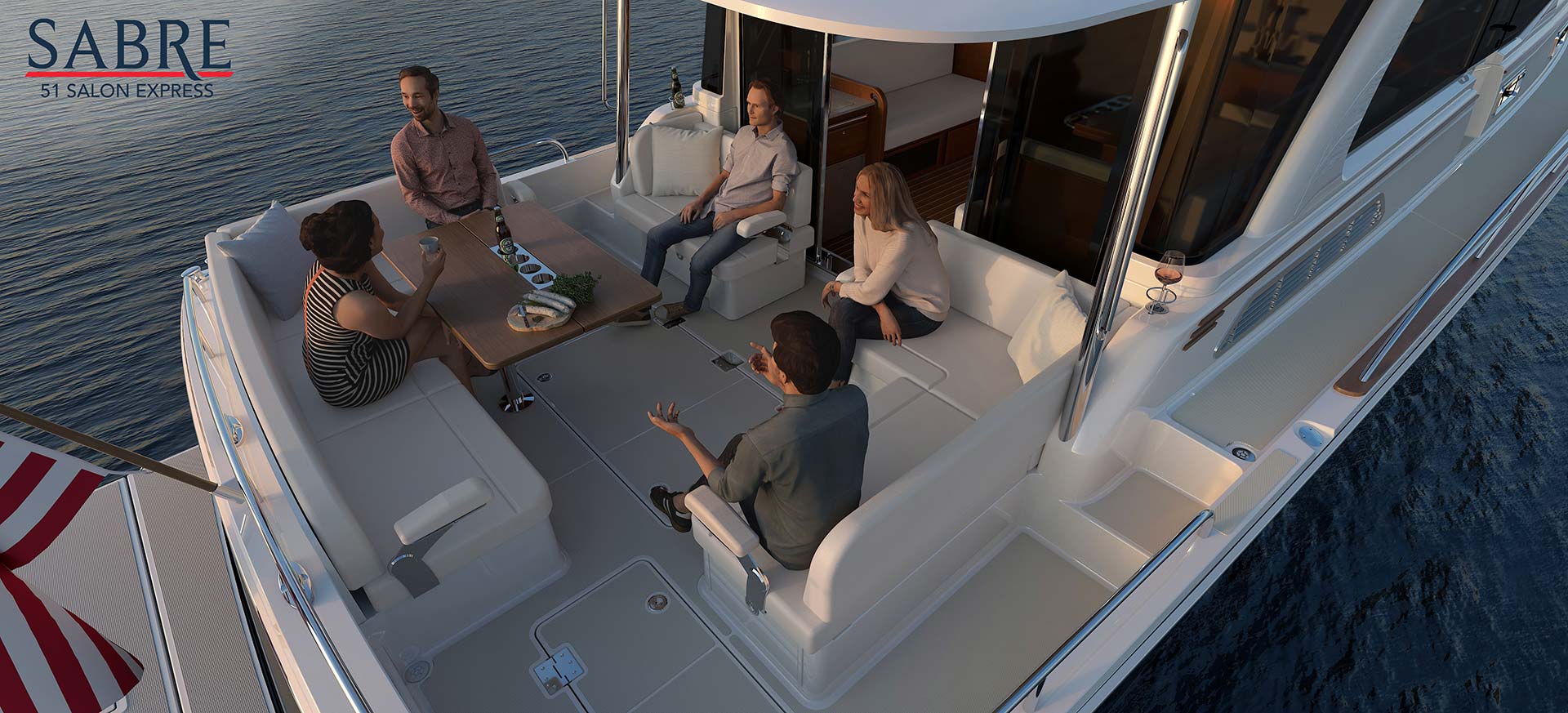

• Teak table in cockpit
• Custom stainless steel “SABRE” logo.
• Saltwater washdown system at the bow.
• Kahlenberg single chrome air horn.

HELM STATION

• Hinged access door to starboard side deck.
• Dual Volvo-Garmin 9219 Multi-Function Displays (MFDs) w/ Separate SD Card Reader.
• Volvo-Penta Autopilot w/ Joystick Driving.
• Volvo-Penta IPS Plus Joystick Controller on Stidd Armrest.
• Twin Lever Shift & Throttle Control (EVC-2.0) w/ Single Lever & Cruise Control Software.
• Triple windshield wipers w/ multiple speed settings.
• Windshield washers plumbed from the freshwater system.
• Ritchie Compass.
• Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps.
• Custom teak steering wheel w/ tilt helm & Sabre logo.
• Twin Stidd N Series helm seats w/ Ultraleather® fabric mounted on a cherry cabinet w/ inboard storage locker

Machinery & Systems

STD. VOLVO PROPULSION SYSTEM & ENGINE ROOM

• Twin Volvo-Penta IPS 800 inboard propulsion systems w/ 24v electric shift transmissions & NiBrAl P-series duo-props
• Tier III emission certified.
• Pleasure craft rated VP D8, 600mhp @ 3000rpm engines.
• Integrated freshwater heat exchanger cooling system.
• 24v-110Amp alternator each engine.
• Extra 12v-115Amp alternator.
• Volvo-Penta 900mm Interceptor trim system w/ auto trim.
• Dynamic Positioning System (DPS).
• Active Corrosion Protection system (ACP).
• Volvo-Penta Clear Wake Exhaust bypass system (EVC controlled).
• Groco raw water intake strainers & safety sea valves.
• Engine room blower & vent ducts.
• Engine room floor with FRP anti-skid.
• Gloss white engine room.
• Gloss white painted engines.
• Mylar-faced foam noise barrier.

FUEL SYSTEM

• (2) 300 USG diesel fuel tanks port and starboard.
• Dual Racor fuel filters
• (2) 2” Diesel deck fill plates.

NMEA2000 NETWORK SYSTEM – SABRE SWITCHING

• Fully networked electrical system w/ digital switching & onboard Wi-Fi.
• Network monitoring & control of AC & DC electrical circuits.
• Backup/override of all network circuit faults.
• Modes of Operation – single push button activation of boat-wide circuits.
• iPad Mini with Launch Port for wireless control of network systems.
• Network-controlled HVAC system.
• Sabre Connect telematics for remote, essential vessel monitoring & switching.
• Parallel NMEA 2000 backbone for dealer/OEM-installed navigational electronics network.

120VAC ELECTRICAL SYSTEM

• Cummins/Onan 13.5KW generator including:
  • Dedicated start battery.
  • Water drop muffler.
  • Cooling water intake strainer.
  • Sound shield & Transfer switch.
• 50A shore power service with Glendinning CableMaster & 85ft. cord.
• Polarization transformer with galvanic isolator.
• Illuminated main circuit breaker distribution panel.
• Digital AC system monitor
• 120V GFCI protected outlets in each cabin and engine room.
• Victron MultiPlus combined inverter-charger, 3000W inverter & 100A charger (charges house battery bank).
• Victron 100amp, 3-bank battery charger
• Reverse cycle heat/air conditioning with 4 zones. One 10k BTU in the forward cabin, one 10k BTU in the master cabin, 16k BTU combined for galley/pantry/utility, and 32k BTU combined for main salon.

12VDC ELECTRICAL SYSTEM

• 24vDC, AGM Group 31 engine starting battery banks for each engine (2-12volt batteries/engine).
• (6) 6-Volt AGM deep cycle ship’s service batteries.
• (1) AGM Group 24 generator starting battery.
• Remote control battery switches with controls at helm.
• Emergency start battery remote parallel switch.
• Illuminated main circuit breaker distribution.
• Digital battery monitor.
• High-output, efficient LED lighting throughout boat.
• Dimmers in all cabins and cockpit.
• Marine-grade, UL & ABYC standard tinned copper wire throughout.
• 12VDC USB chargers at helm and in all cabins

WASTE DISPOSAL

• Polyethylene holding tank with 80-gallon capacity.
• Jabsco Quiet Flush freshwater MSD in guest head
• Dometic MasterFlush MSD in master head
• Diaphragm waste pump on holding tank.

FRESH WATER SYSTEM

• Water capacity 185 gals.
• 20 gal. 240V hot water heater.
• Dual 12V water pumps.
• Freshwater spigot in the engine room.
• Transom shower, hot and cold.
• Shore water inlet with a filter.

SAFETY

• Single Kahlenberg chrome trumpet horn with compressor.
• Portable fire extinguishers in all accommodation spaces.
• Marelon sea valves on all thru-hull fittings below waterline.
• Bonding system to safeguard against galvanic corrosion.
• Automatic fire extinguishing discharge system in engine space with override.
• (3) Automatic 12V electric bilge pumps.
• (3) High water switches and alarm.
