All measurements are approximate and not guaranteed. Speeds are subject to load, conditions and other factors. Please contact a Boston Yacht Agent to confirm the accuracy of all information

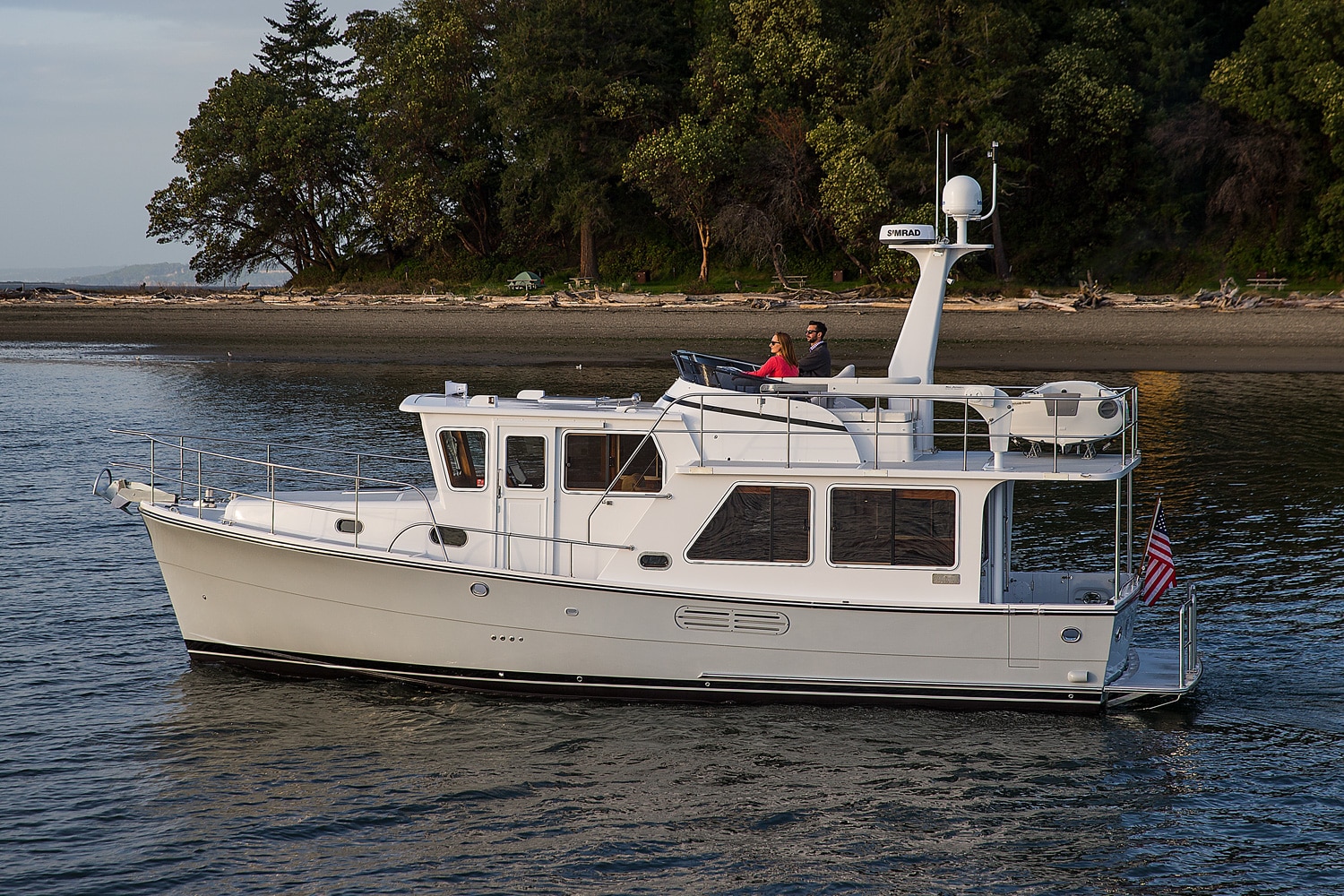

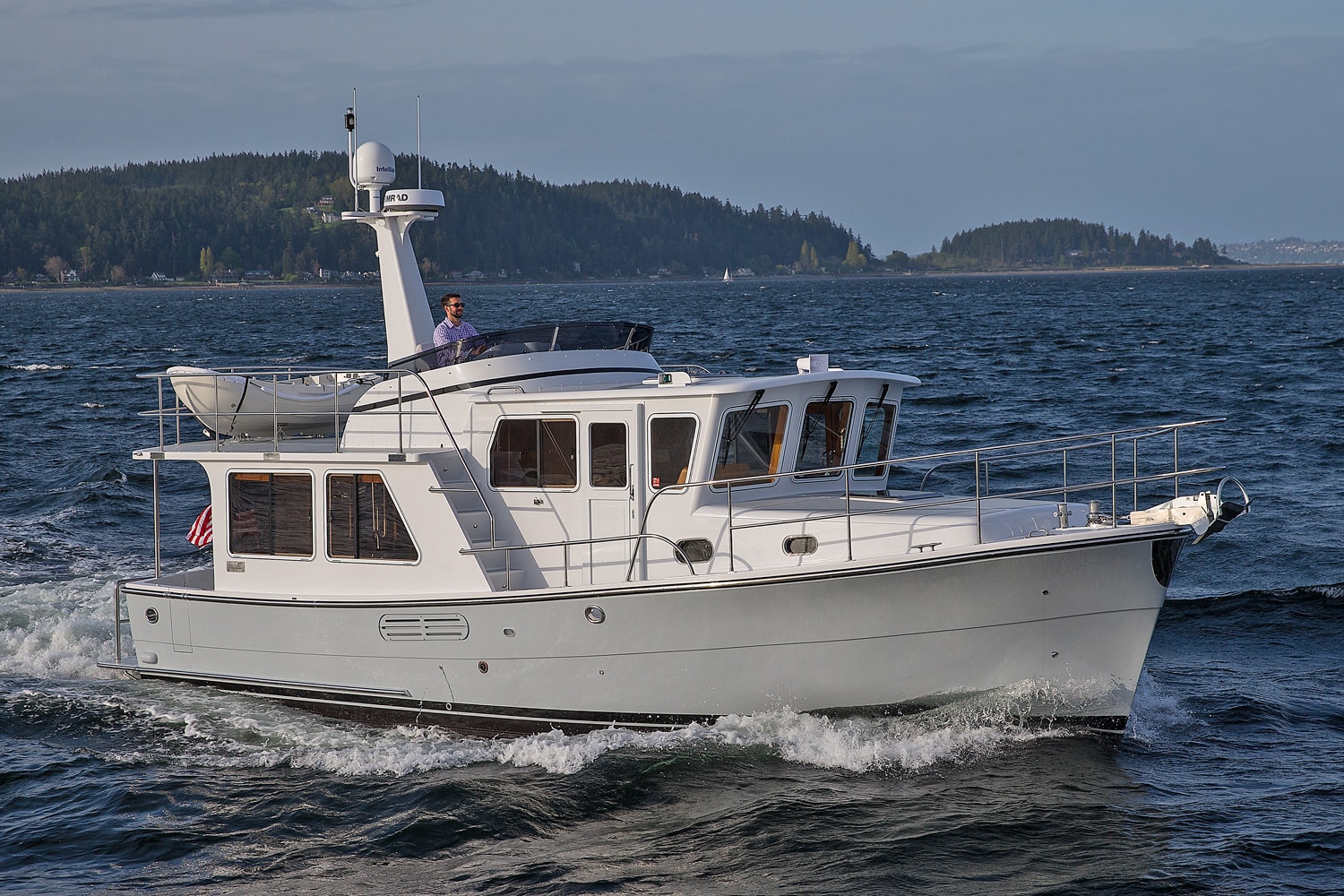

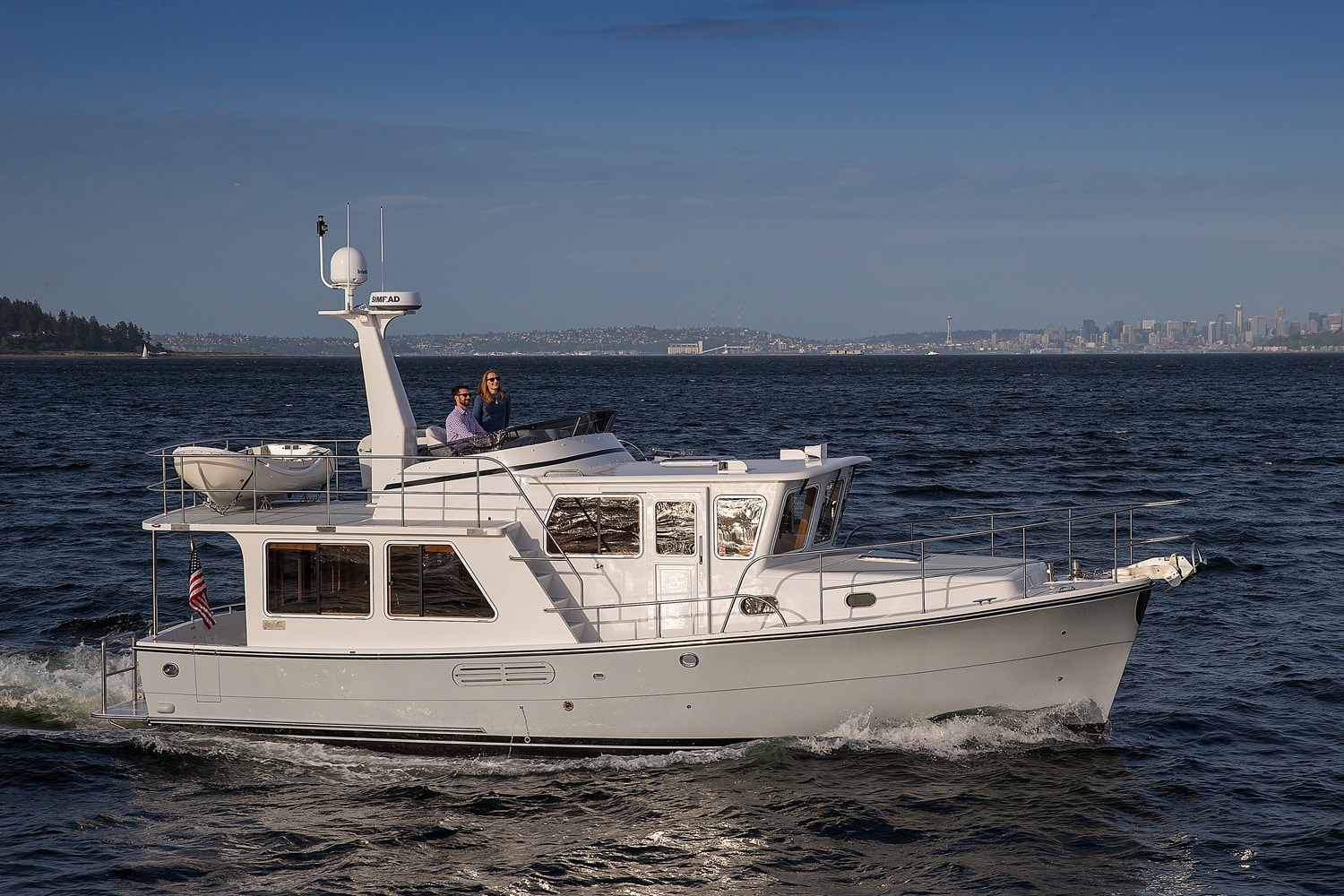

The Helmsman Trawlers 38E Pilothouse is offered at $623,000, well-equipped with the most common and desirable features. The Helmsman Trawlers 38E Pilothouse is an innovative design offering the spaciousness of a much larger boat while fitting into a 40 foot slip.
Base Price includes shipping, delivery, commissioning and training – Seattle or Charleston. Taxes and duties not included. U.S. residents may consider foreign flagging which will remove U.S. import duties. Inquire for more information.
Comments & Broker’s Notes

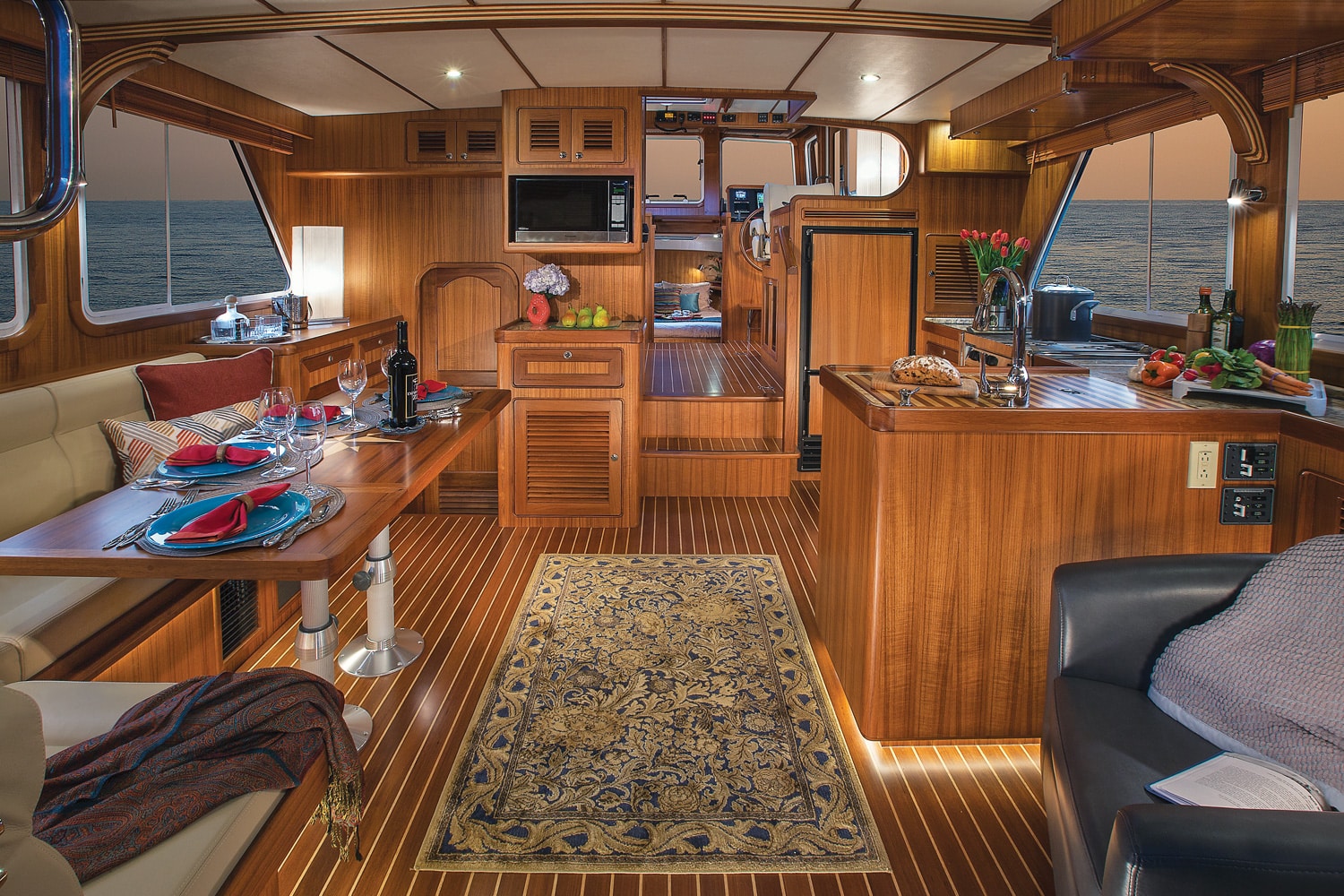

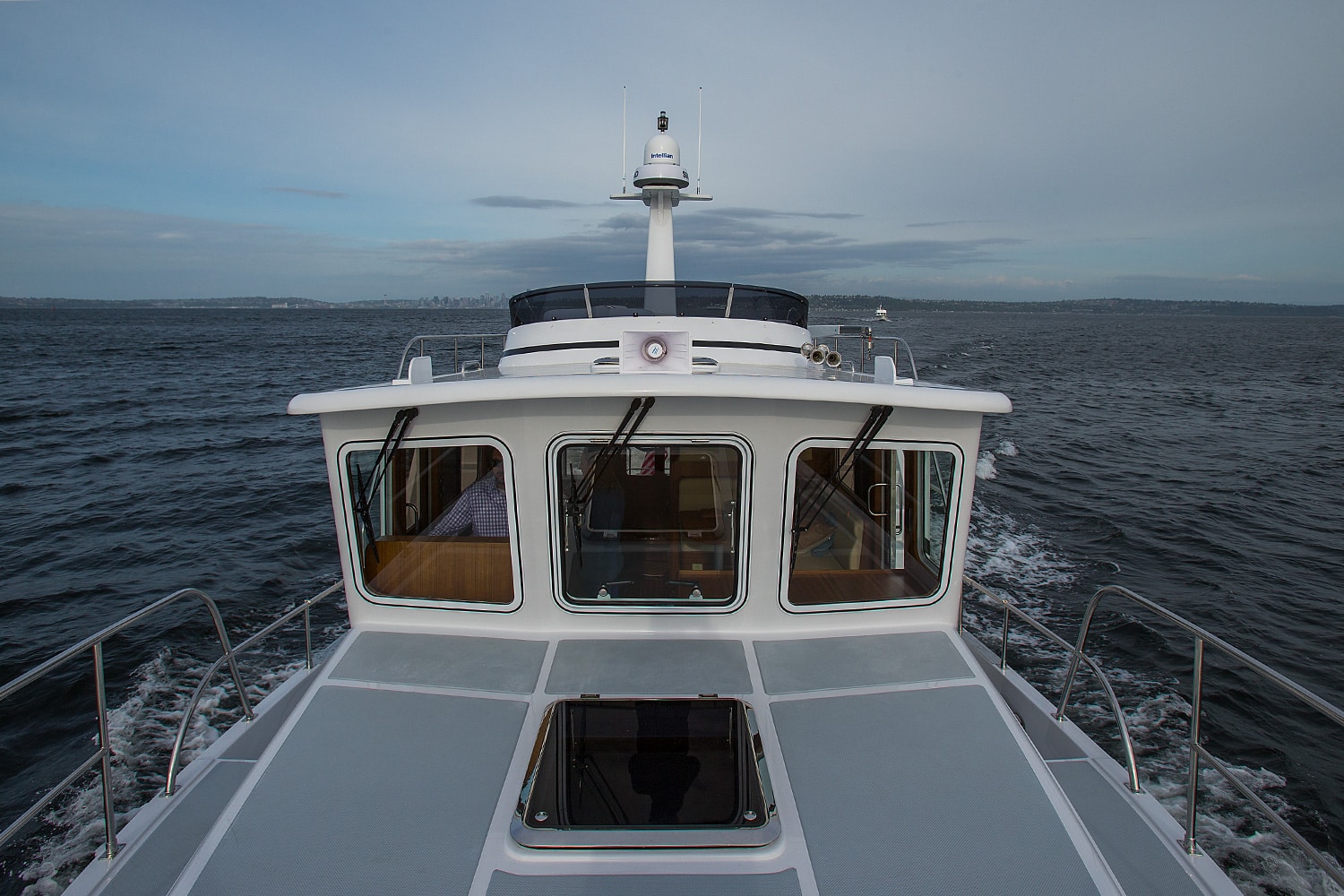

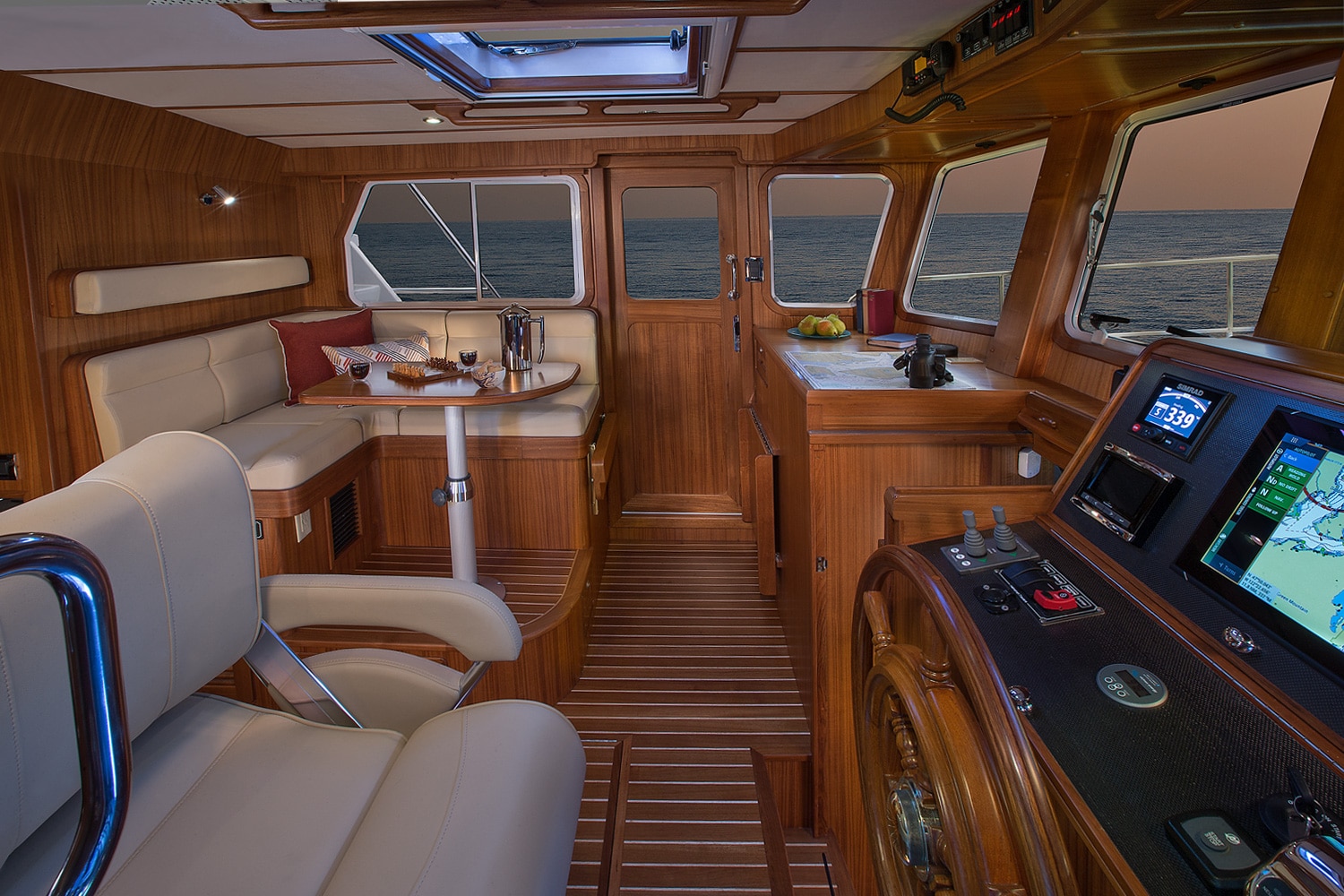

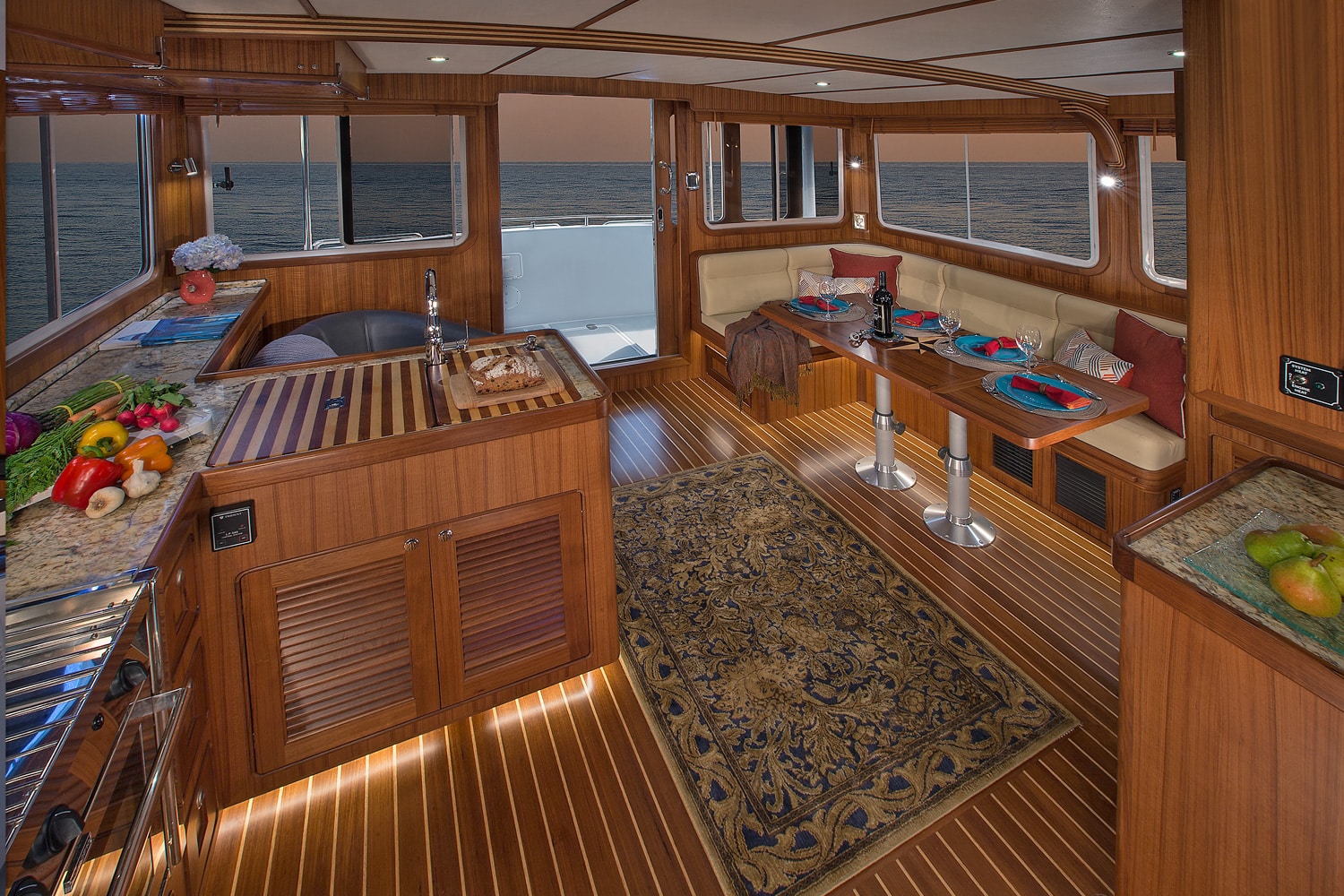

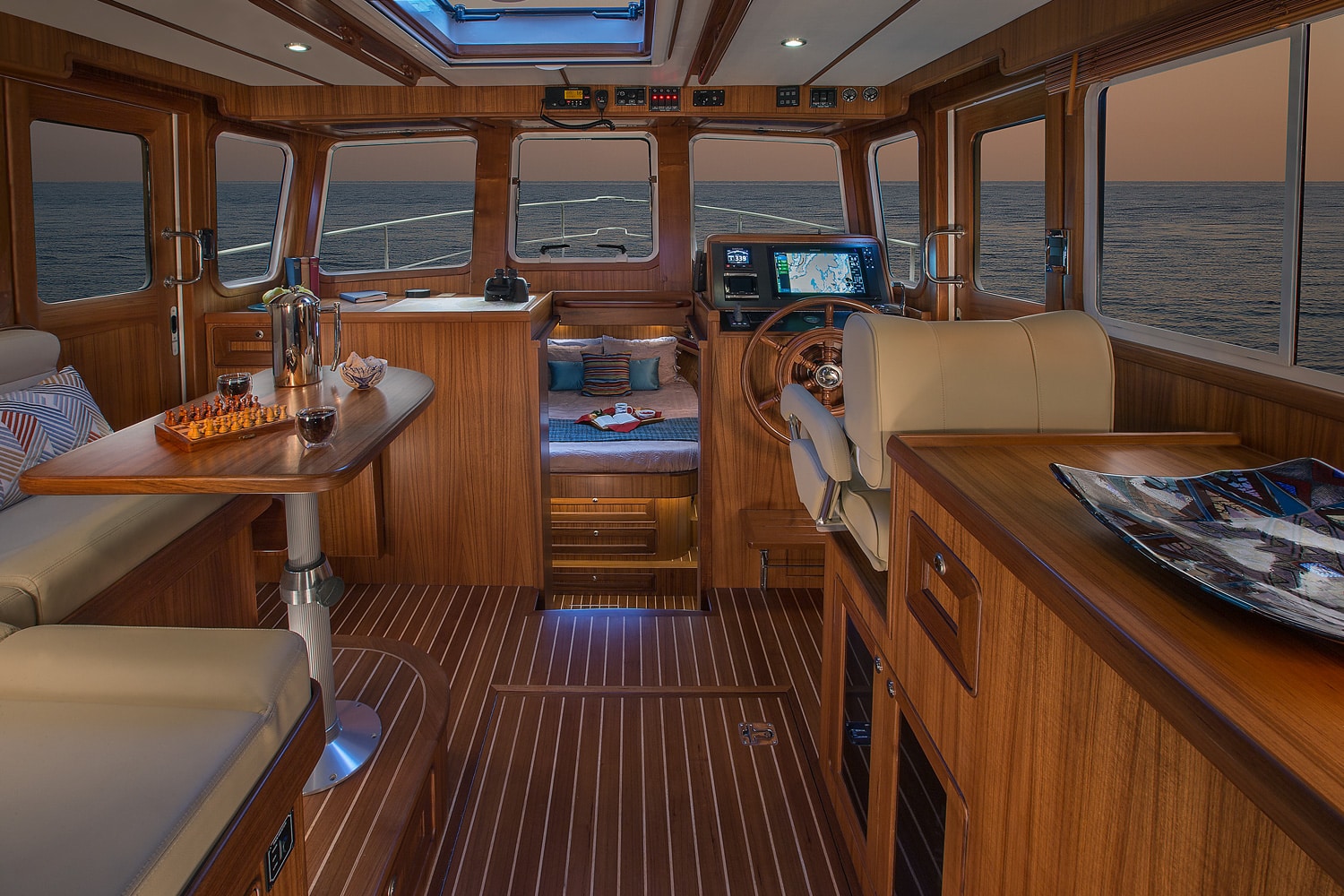

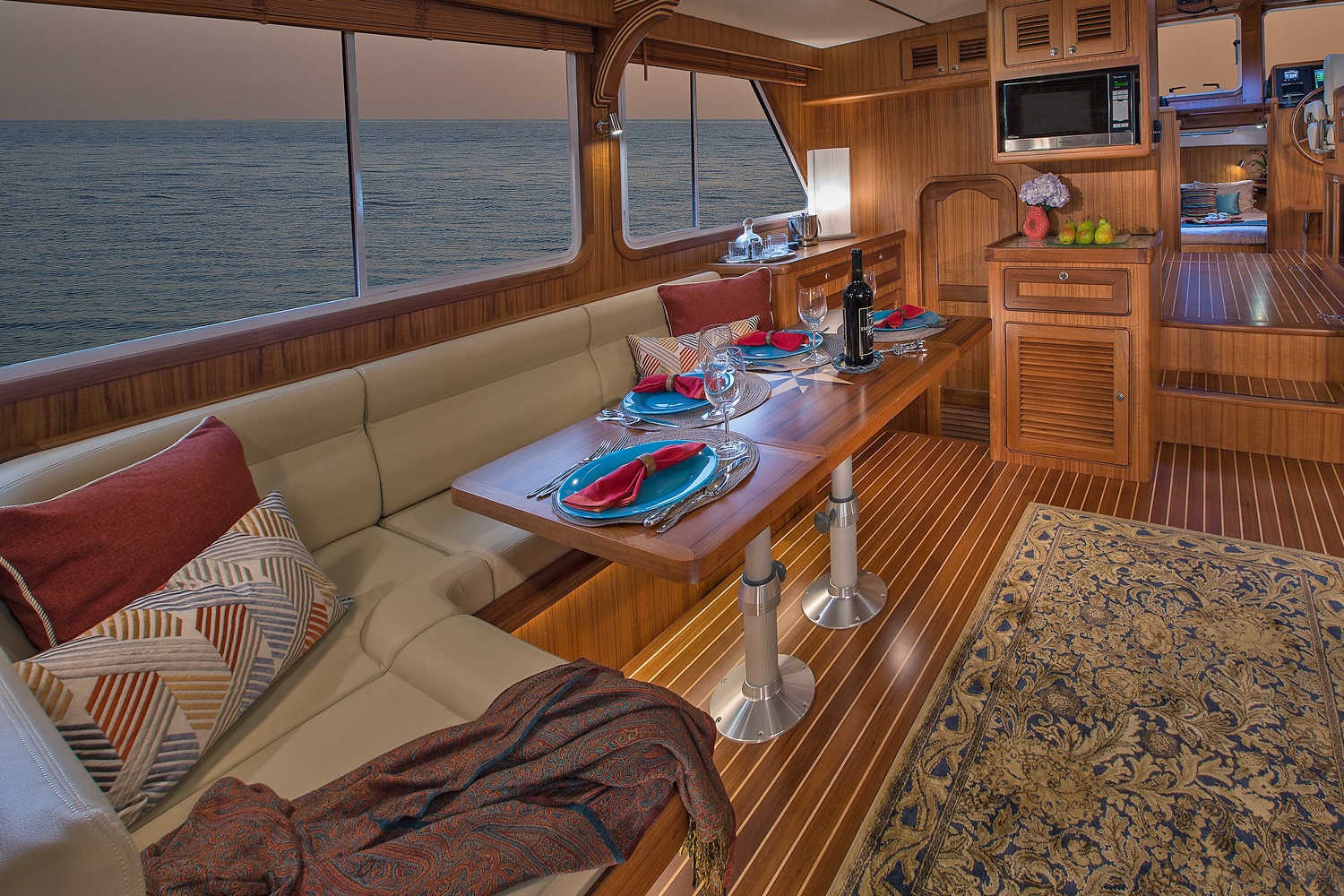

The Helmsman Trawlers 38E low-rise pilothouse has excellent visibility and open communication with the salon, and is a social area too while underway or in port. The full-beam salon is expansive and comfortable, with exceptional light and ventilation.

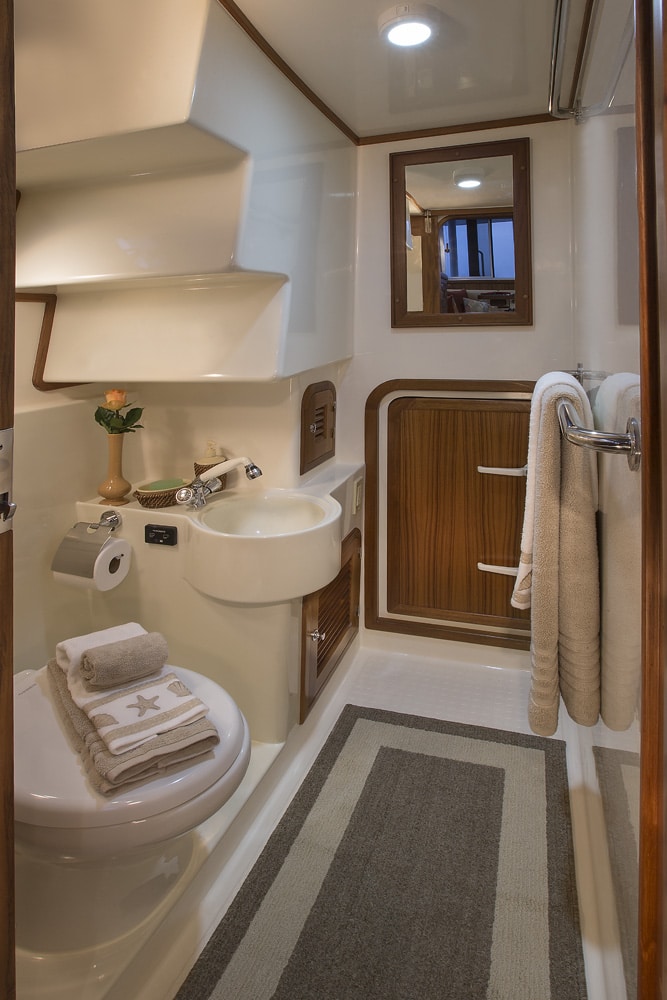

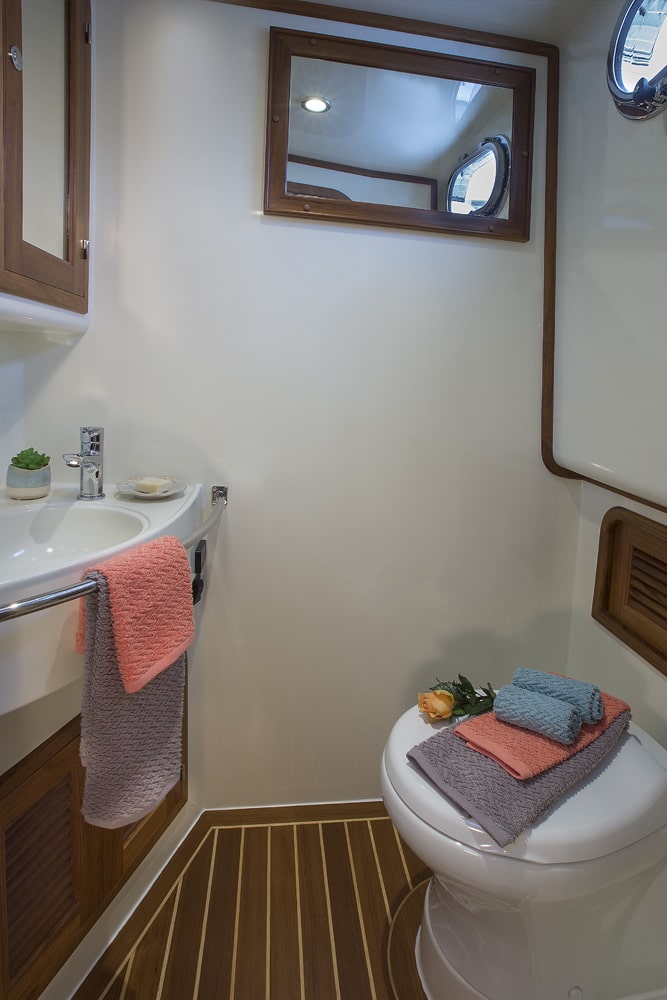

A day head is a rare and practical feature, and the convertible settee and day head can be enclosed to provide a private suite for guests when needed.

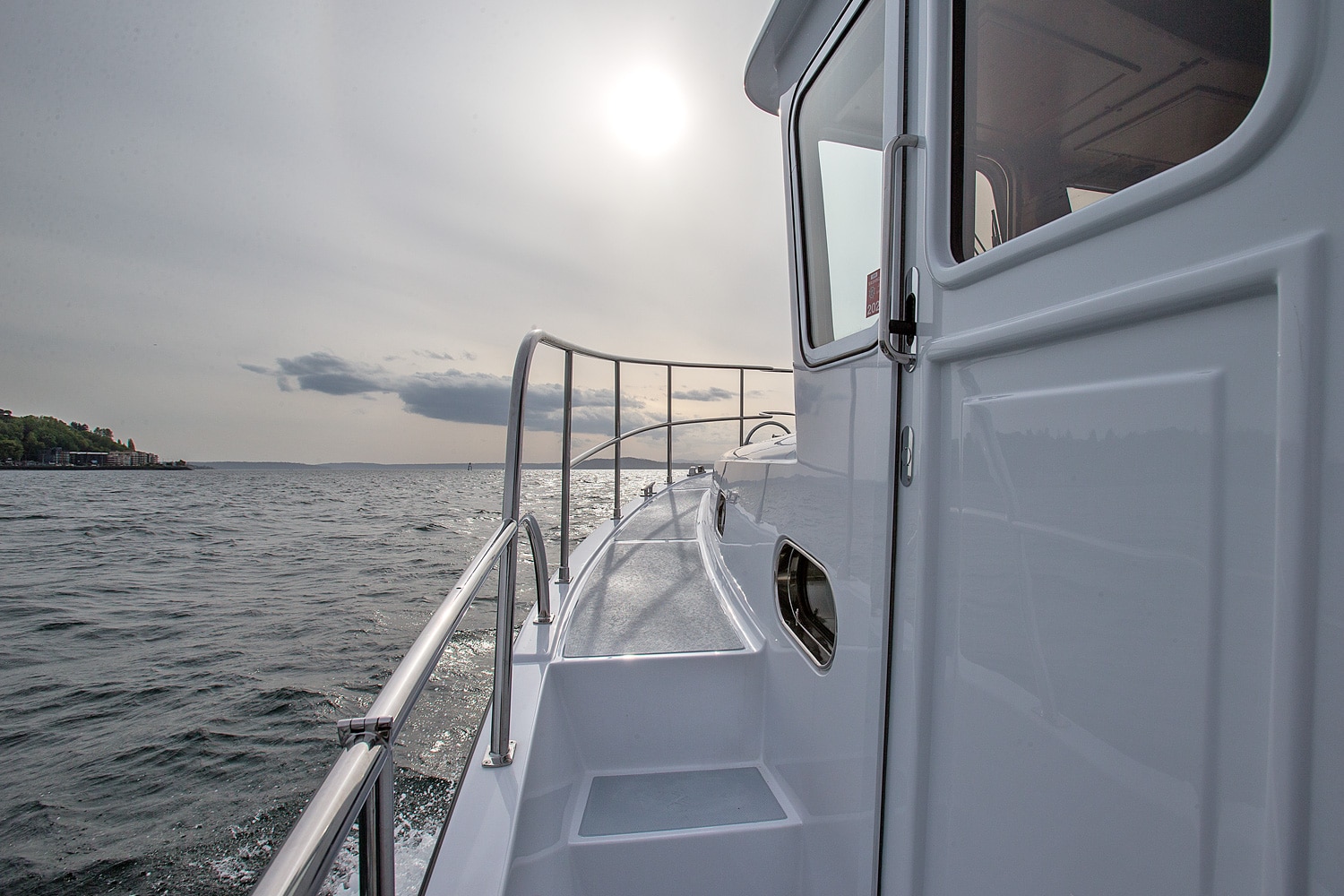

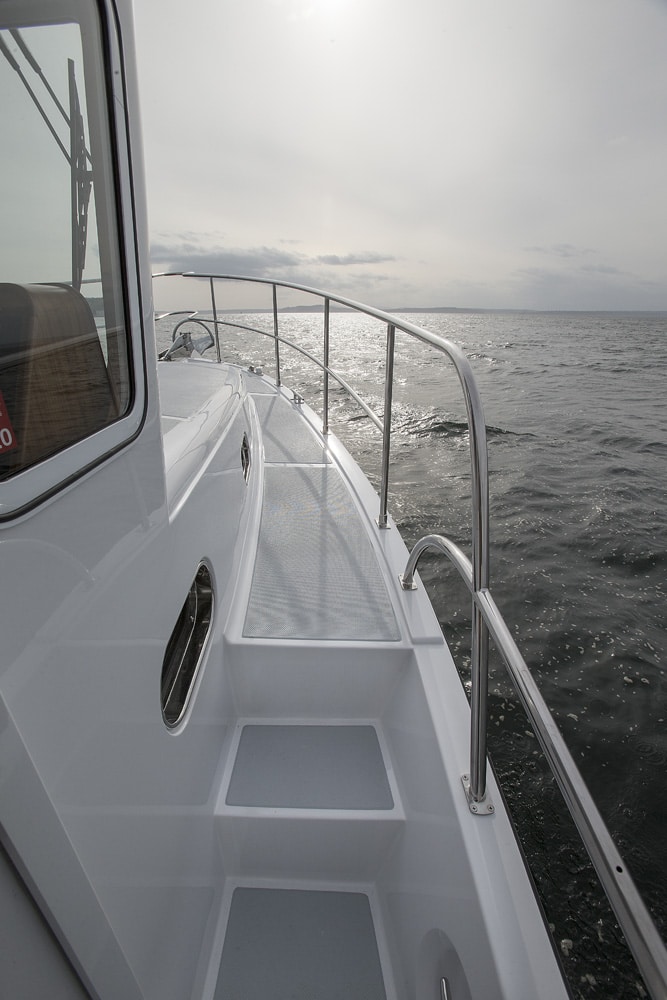

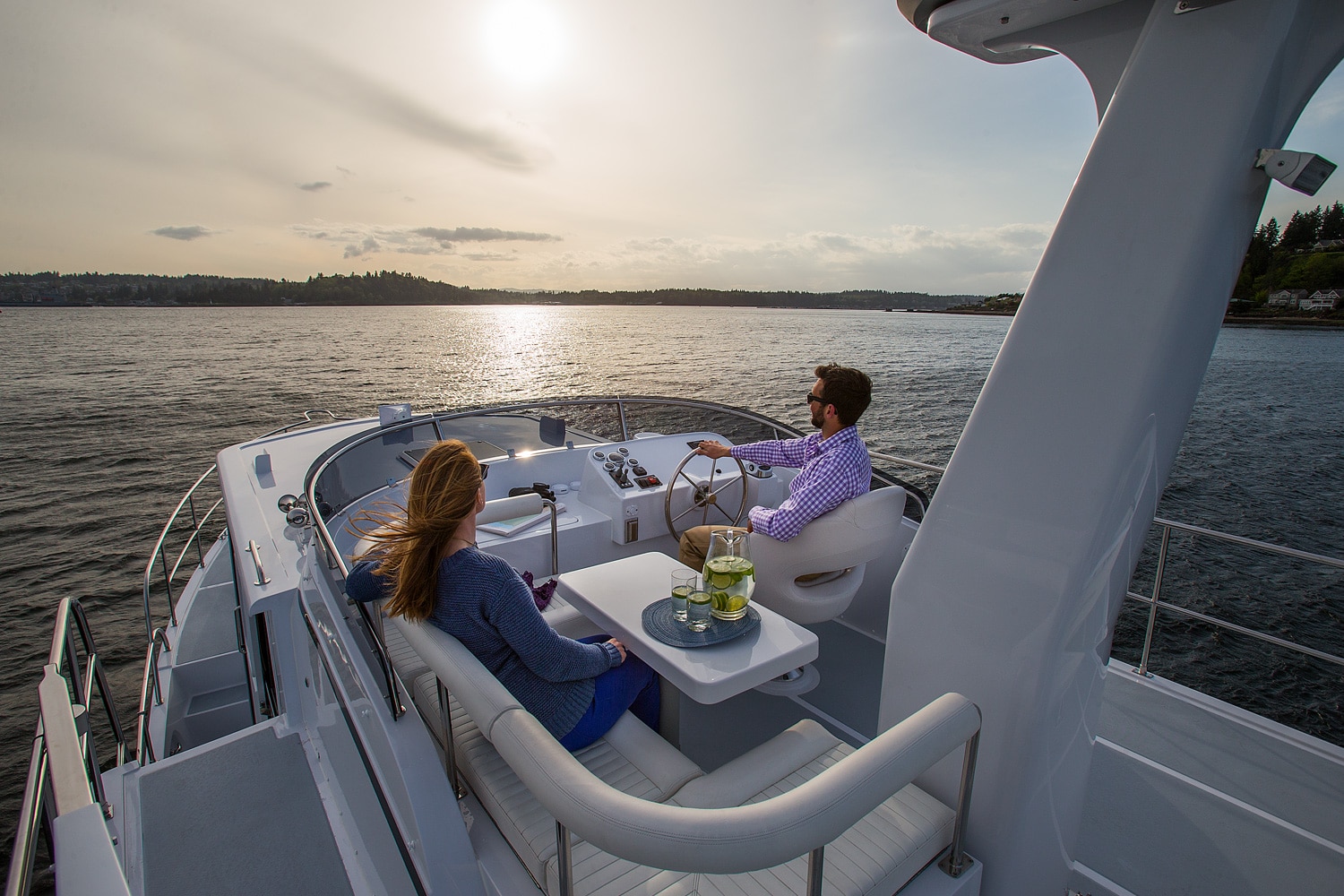

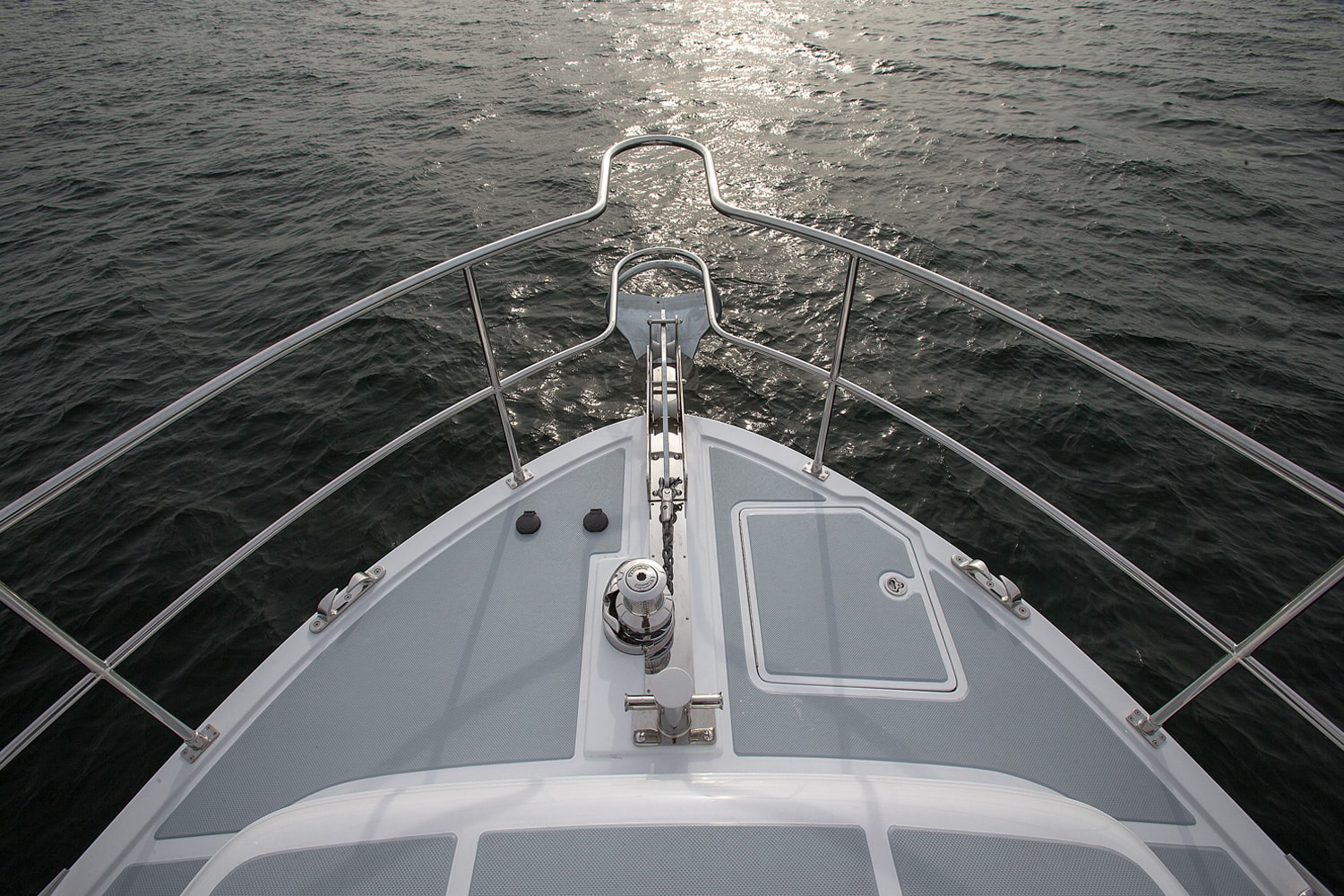

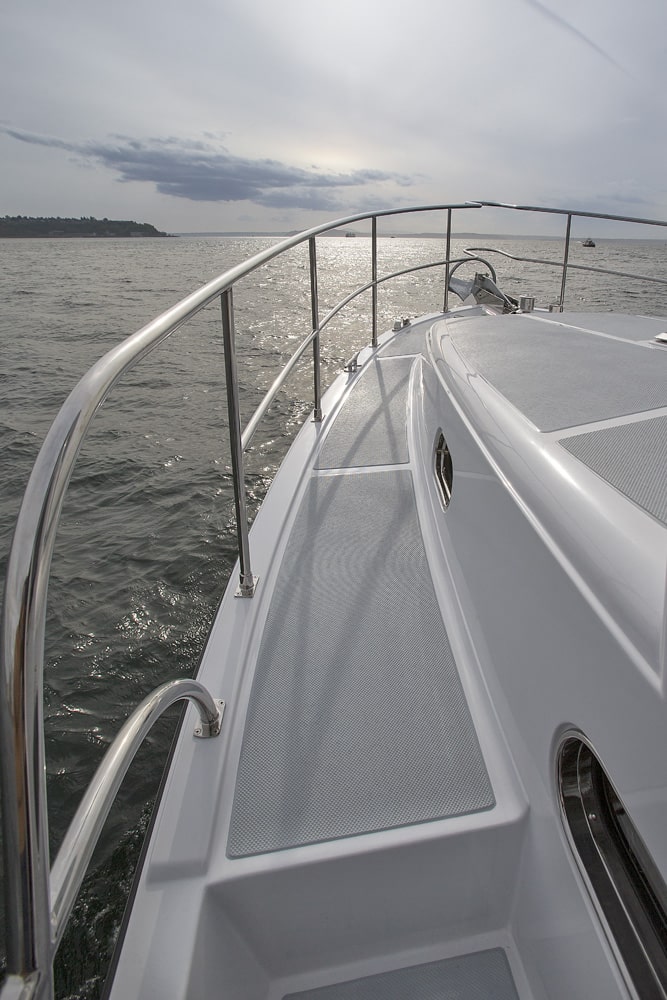

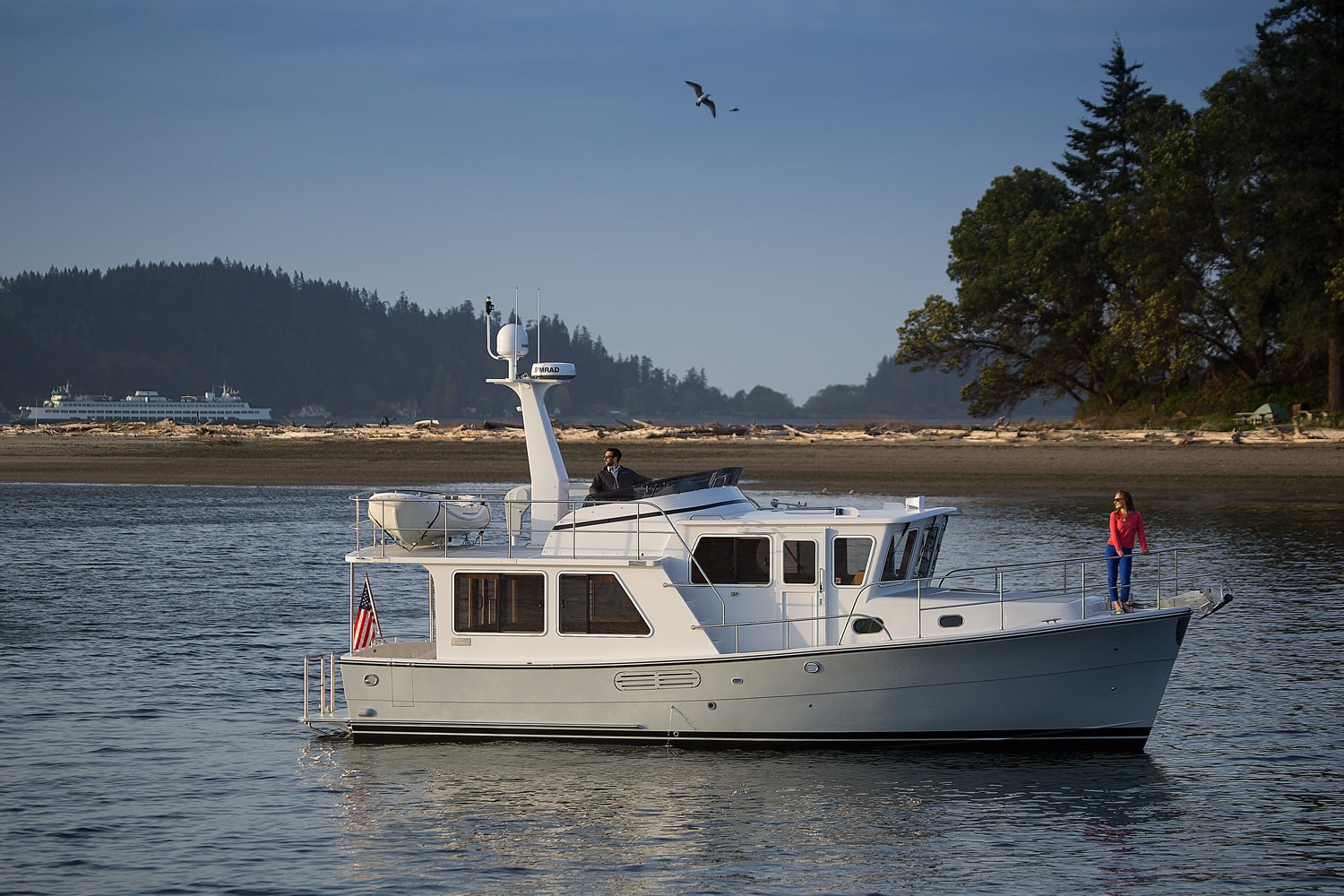

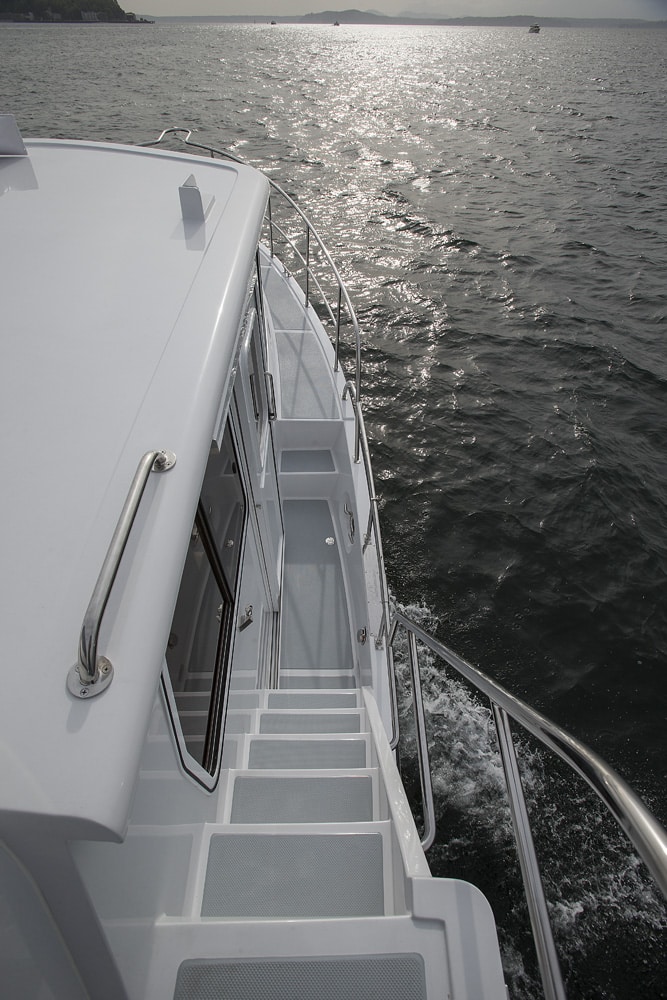

The flybridge is set back to maintain a low profile – which benefits windage and center-of-gravity. A high, flush bow, sturdy railings, full covered cockpit, deep pilothouse side deck footwells and secure flybridge stairs on both sides increase practicality and safety in adverse conditions.
Minimal exterior maintenance and reliable, economical propulsion systems allow owners to spend more time cruising.
All Helmsman Trawlers are designed for long-range, comfortable passage-making. They feature sturdy construction, reliable mechanical and electrical systems, quality components and materials, and stable, efficient hull designs. Beautiful nautical interiors are expertly crafted. Helmsman Trawlers are built to exceptional standards and our quality is superb – examine and compare!
Interior Details
Interior
- LED interior overhead lighting with dimmers
- LED lighting in engineroom
- LED reading lights in salon, galley, pilothouse and master stateroom
- LED cockpit lighting
- Storage cabinet with sliding doors aft of galley

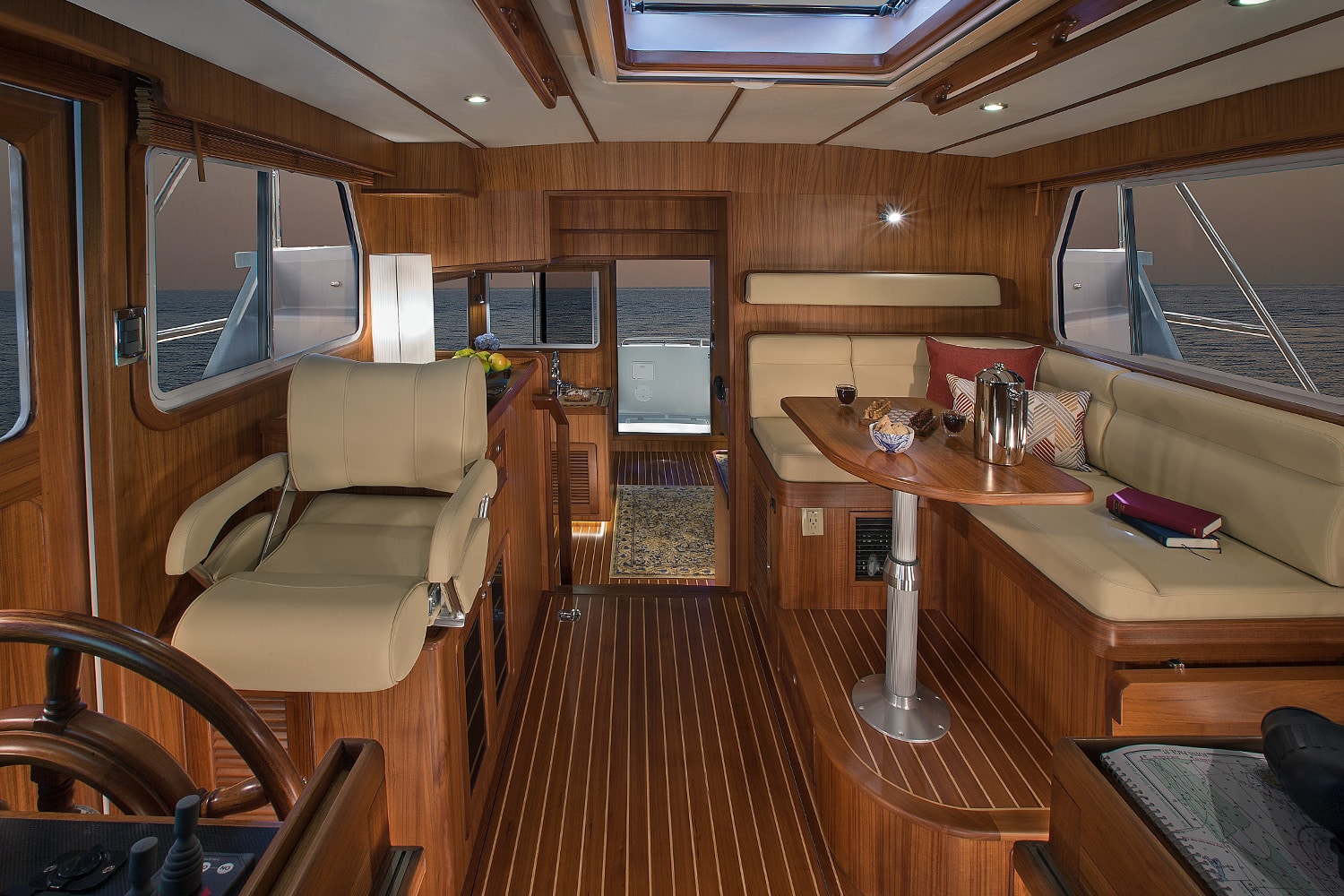

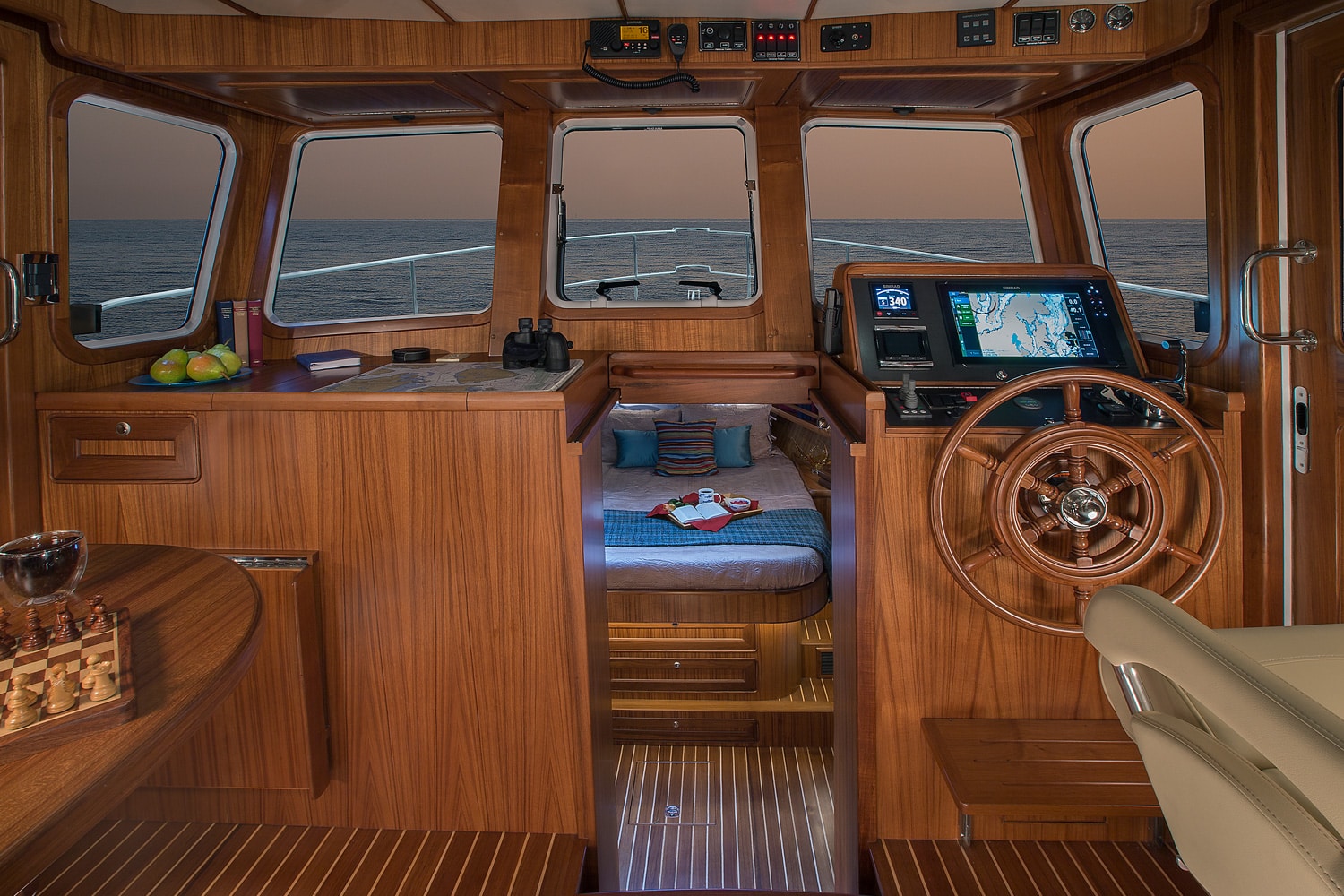

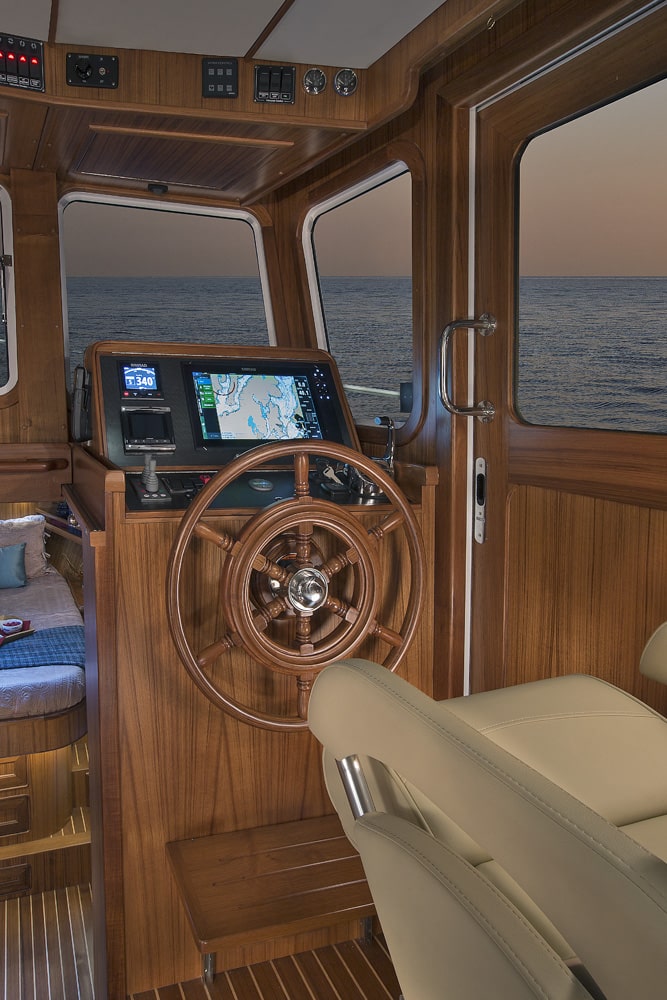

- Pilothouse control center with teak wheel
- Louvered storage cabinet doors for ventilation
- Overhead handholds in pilothouse
- Laminated teak / holly overhead beam with hanging knees in salon
- “Watertight” door for engineroom access from day head
- Stainless steel overhead hatches and portlights with screens

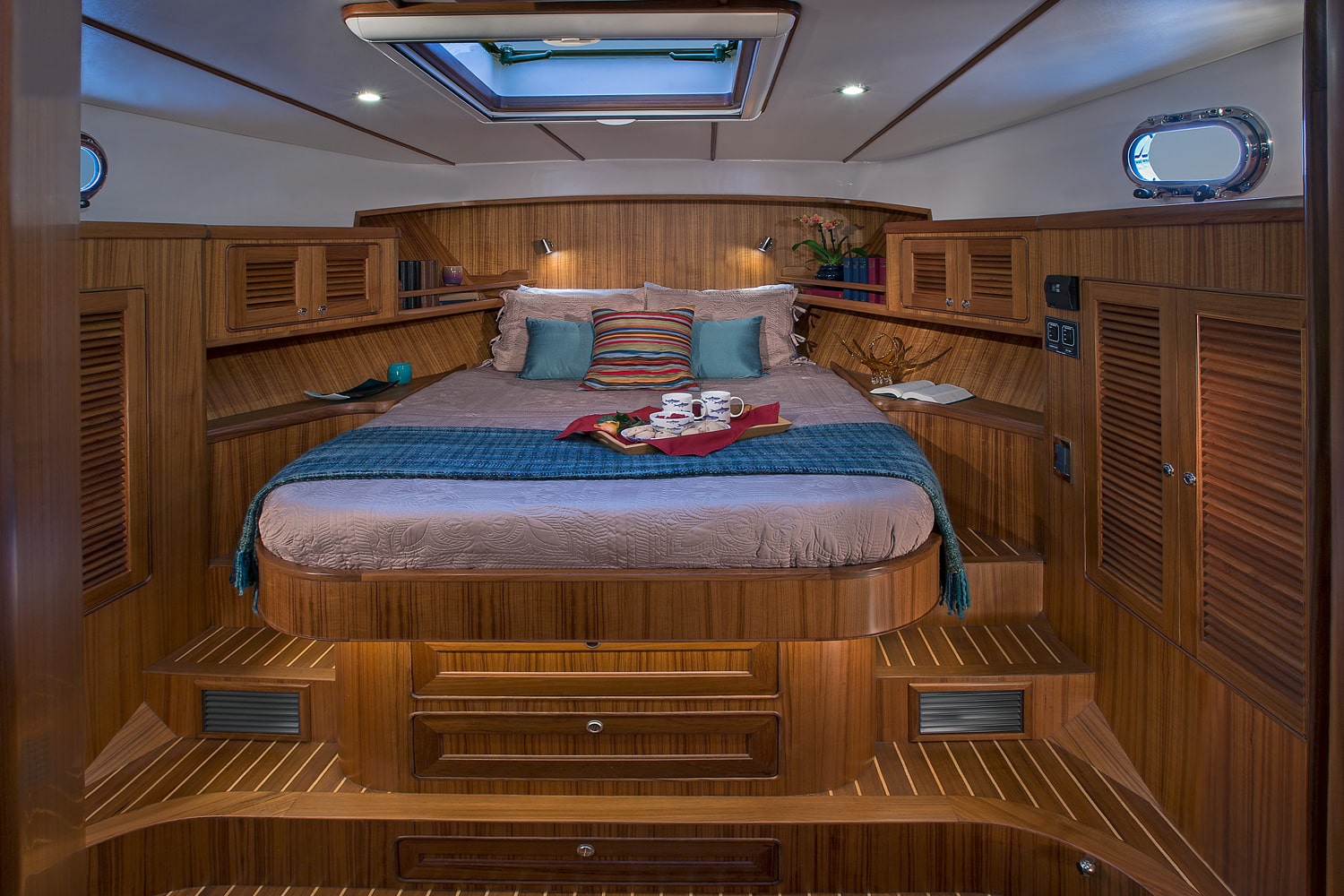

- Privacy door for master stateroom
- Opening center windshield window
- Wood blinds in salon and pilothouse
- Sliding lower helm seat with flip-up bolster

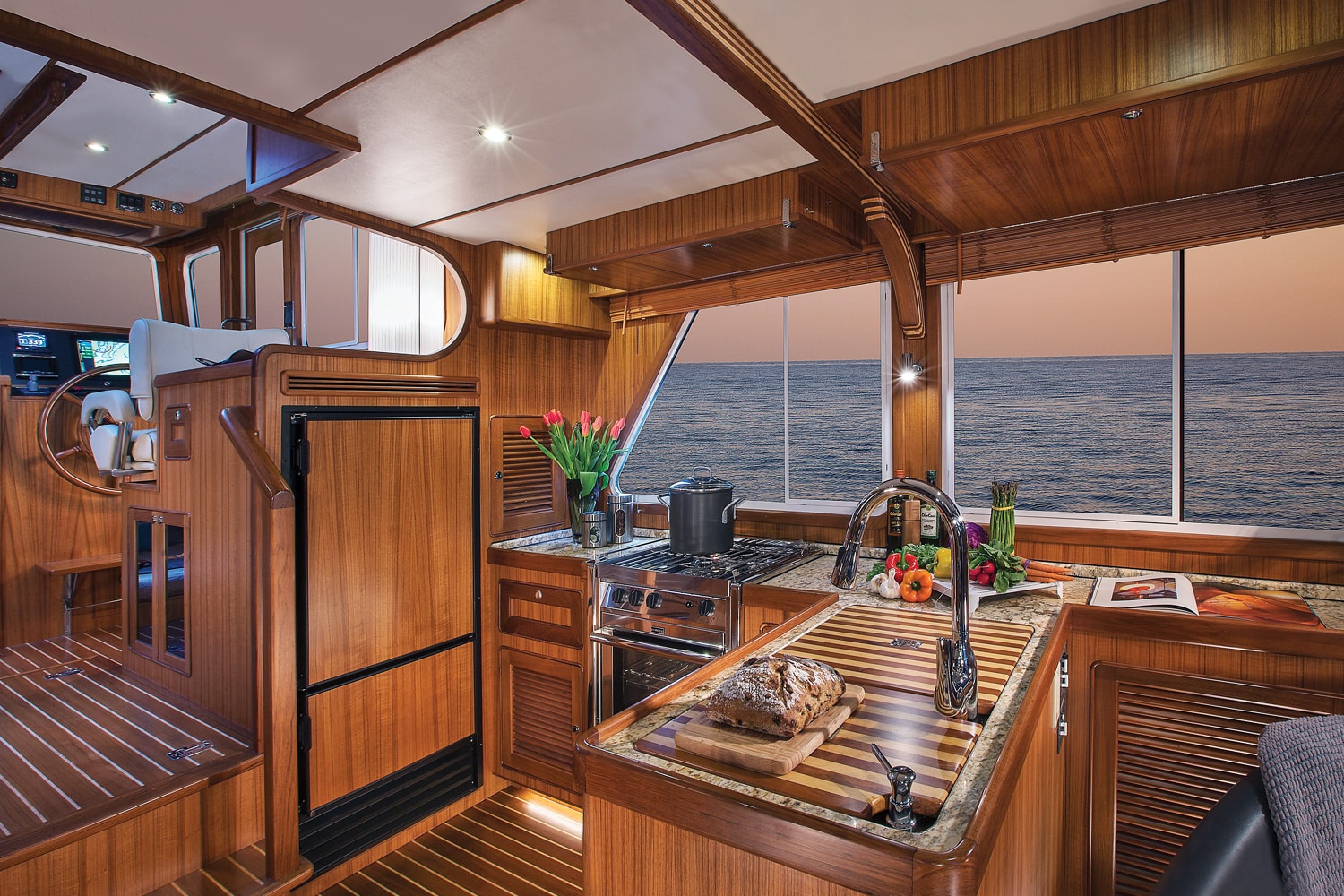

- Caesarstone galley countertops
- Spice rack in galley
- Overhead drop-down storage cabinets in galley
- Medicine cabinet in master head
Design and Construction
- Semi-displacement hull design with soft chines, deep forefoot, broad sections aft for form stability, and full keel
- Strong stainless steel skeg and large rudder
- Low profile with chariot-style flybridge and low-rise pilothouse
- Full-beam salon, open interior design, port and starboard pilothouse doors, secure steps and handrails to flybridge

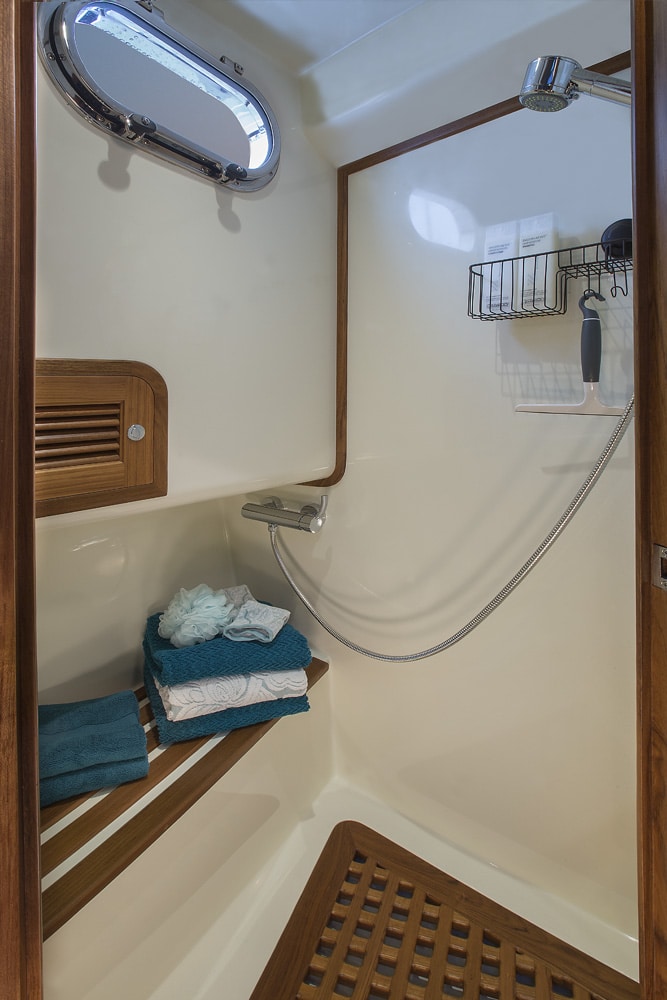

- Separate head and shower compartments in master; day head with shower adjacent to salon

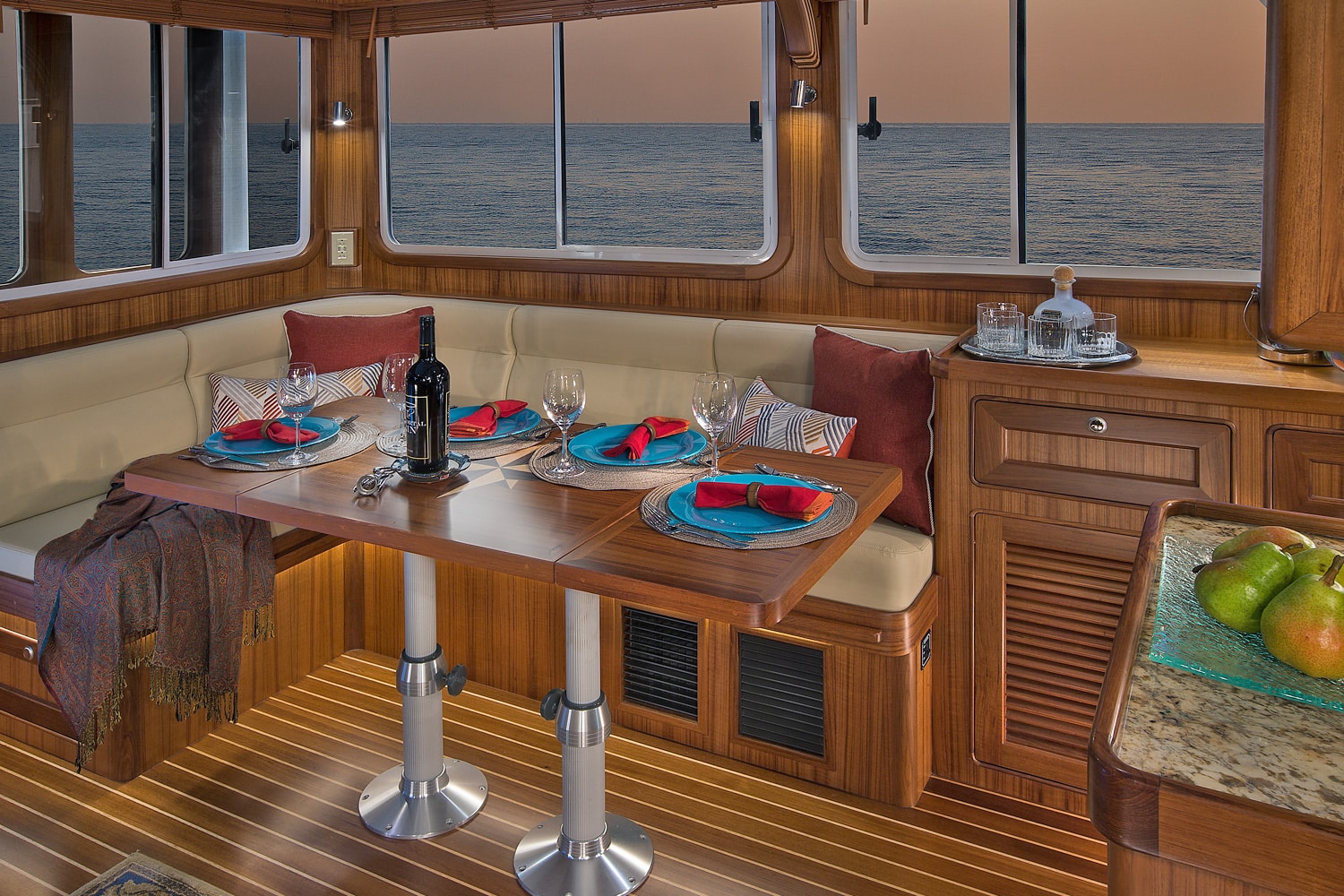

- Convertible settee in salon; space for a freestanding chair or recliner
- Exceptional light and ventilation – opening windows (7), opening portlights (5), opening hatches (2)
- Structural stiffness with a solid FRP laminate hull with vinylester resins in external layers — hull fitted with an internal FRP grid
- Decks built with substantial laminations and cored with PVC foam
- FRP fuel tanks (2), stainless steel water tanks (2), and FRP holding tank (1)
- Extensive use of sound deadening techniques and materials
- Multi-layer composite interior floor construction, with rubber cork inner layer for sound and vibration reduction, topped with teak and holly strip planks
- Expertly-crafted cabinetry — teak solids and veneers throughout for strength, water resistance and long-lasting beauty
- Hand-brushed and hand-rubbed two-part polyurethane varnish in multiple layers, with final satin finish
- Ceiling panels easily removable for wiring access
- Wireways and cable runs positioned for easy equipment installations
- Quality stainless steel deck hardware
- Aluminum sliding pilothouse doors (2) and aft cabin door
- Oversized double-rung stainless steel safety rails with finely polished welds
Exterior Details
Exterior
- Matterhorn White gel coat hull, superstructure and deck surfaces
- Sleipner bow and stern thrusters
- Transom door
- FRP swim platform with pull-out ladder
- Opening side handrails at pilothouse

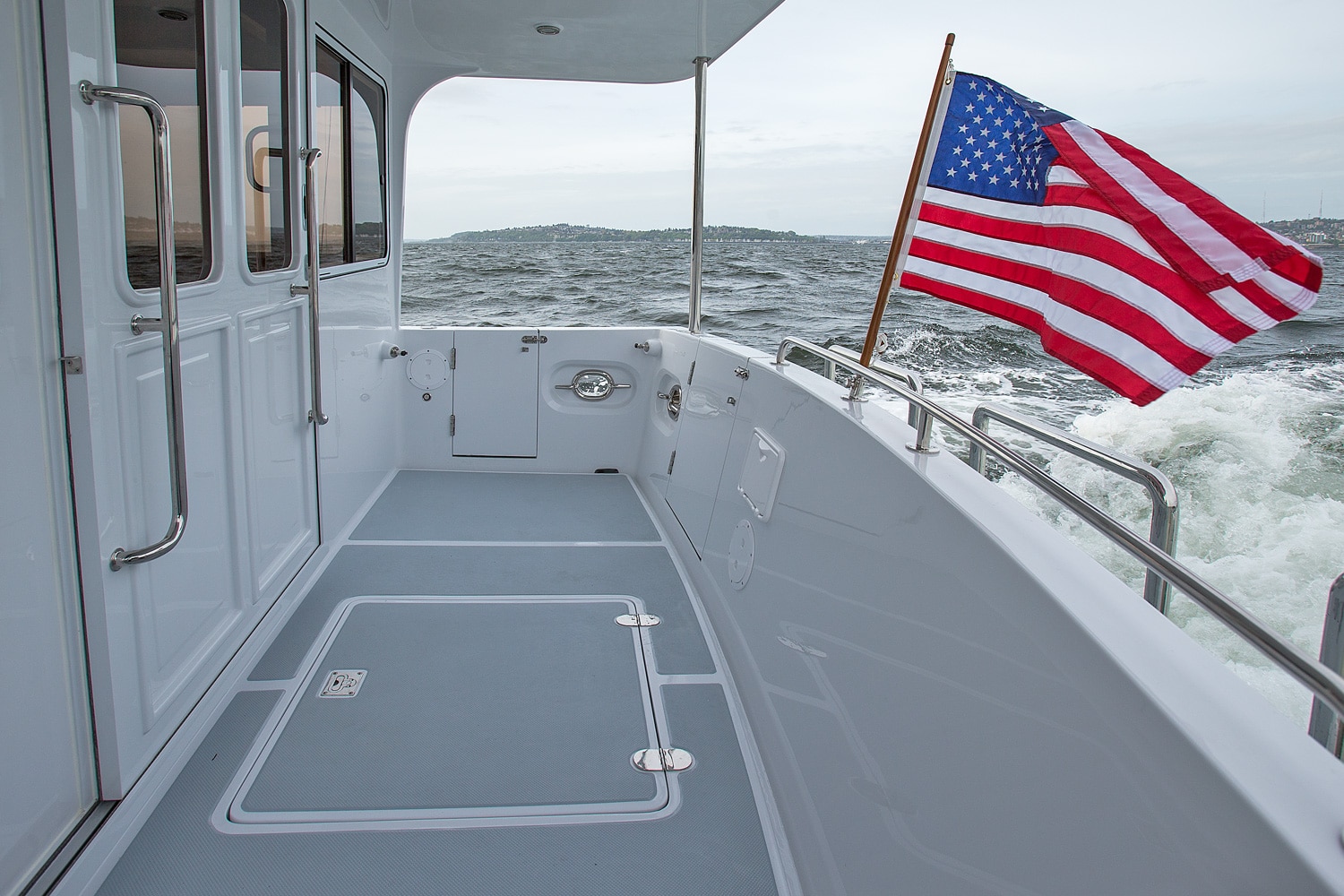

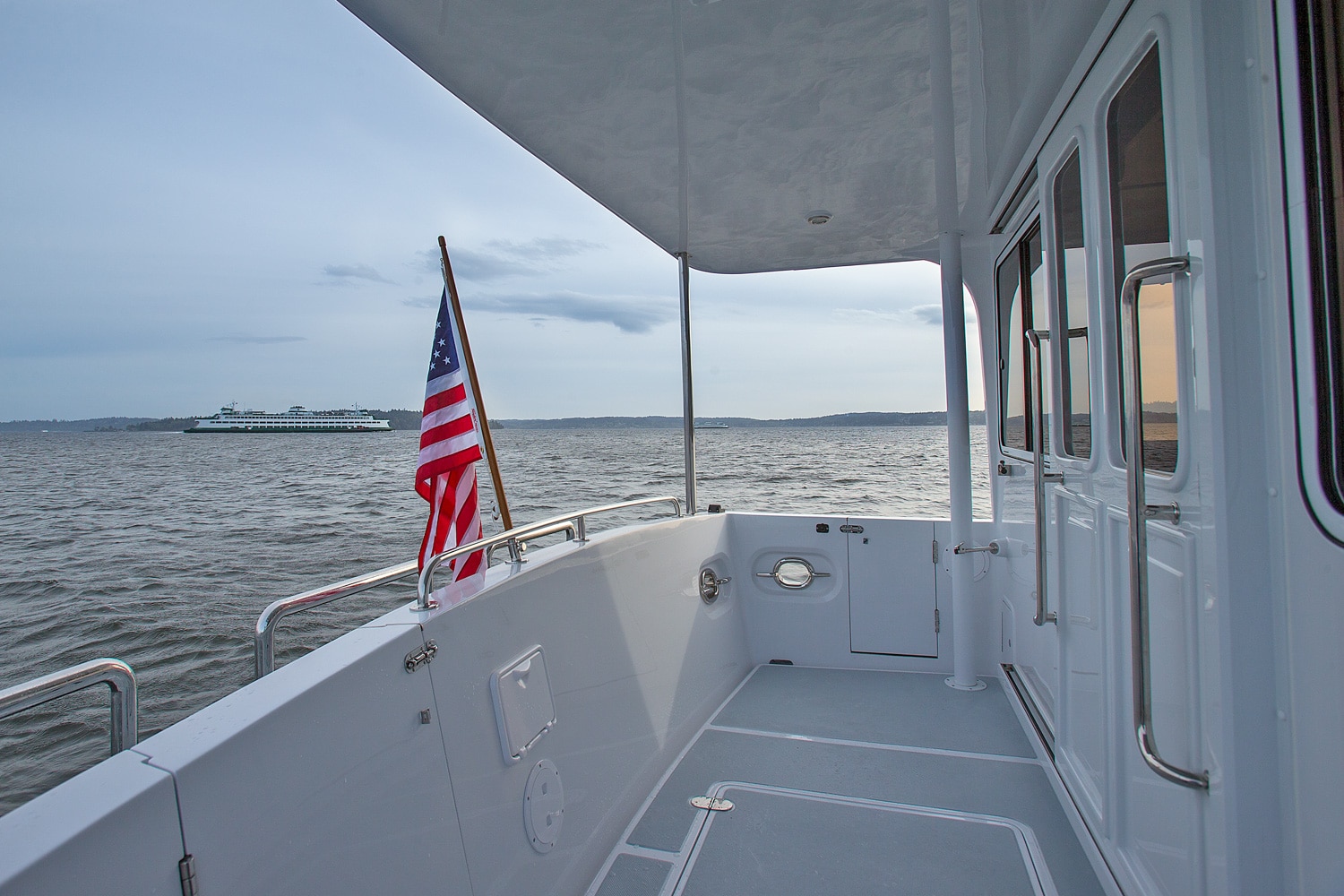

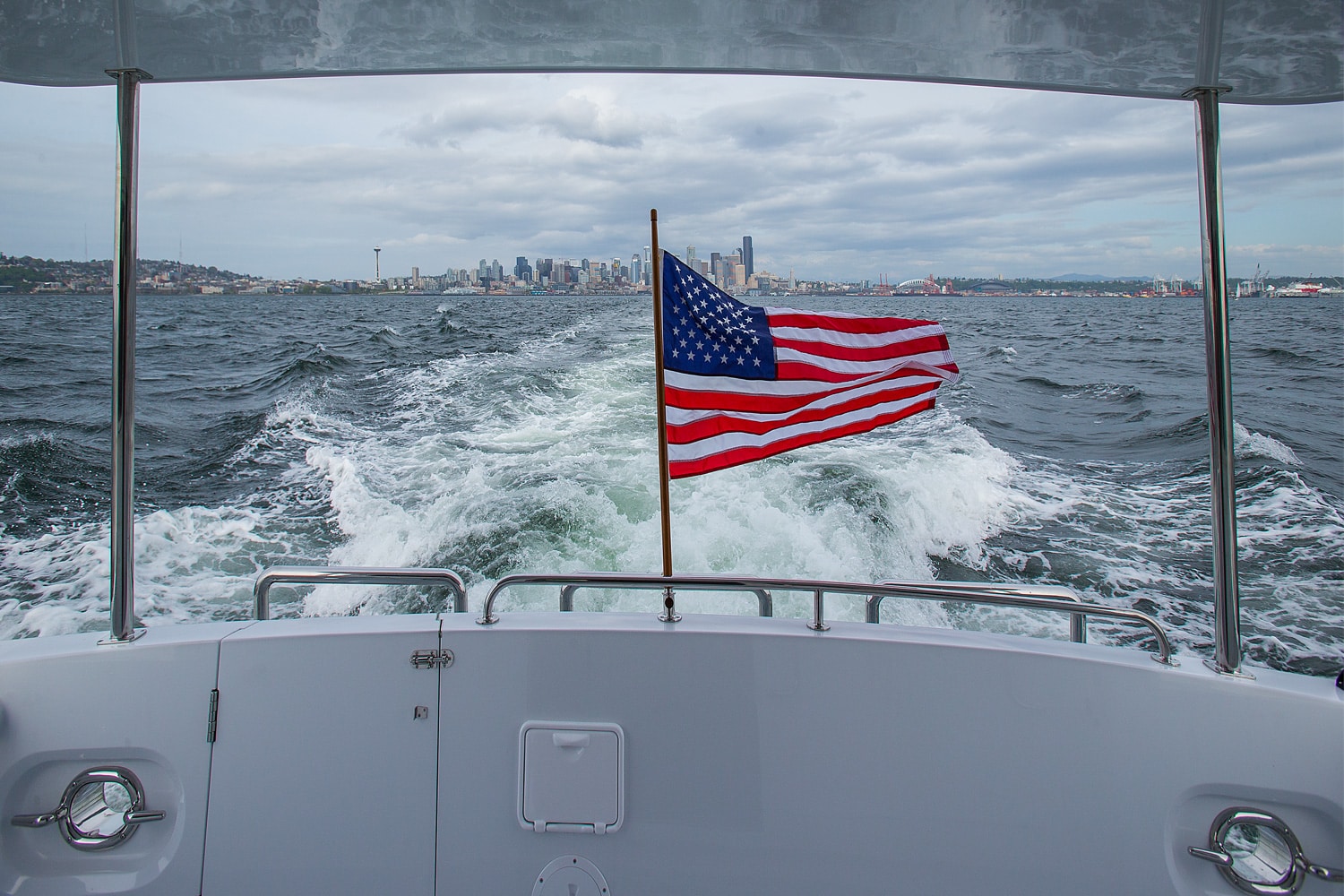

- Full-length cockpit cover

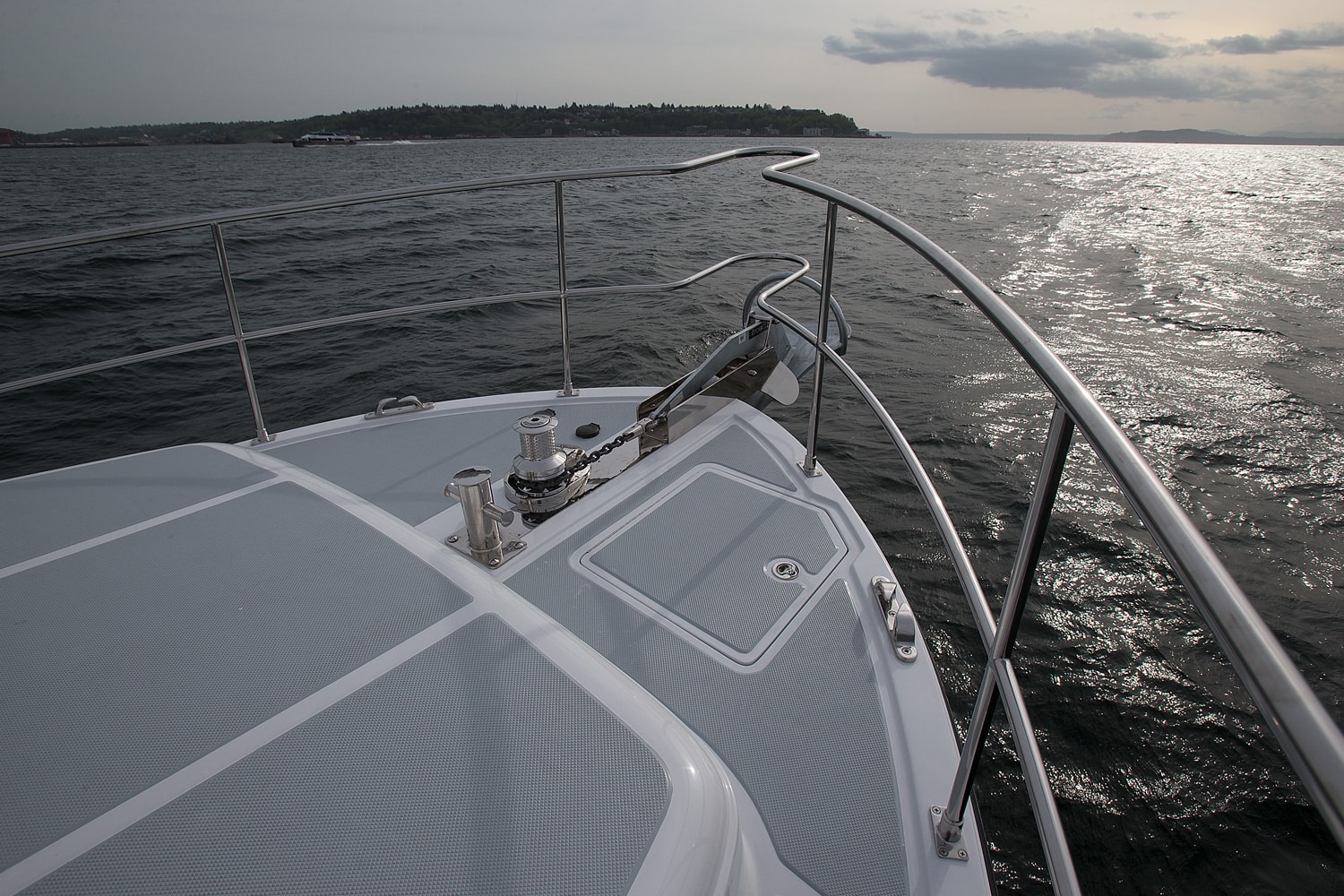

- Lewmar V4 windlass with 200’ of 5/16” high tensile chain
- 45 lb stainless steel Bruce-type anchor
- Anchor chain locker access hatch on foredeck
- Raw water anchor washdown at bow
- Hawse cleats on transom (2), aft (2) and amidships (2)

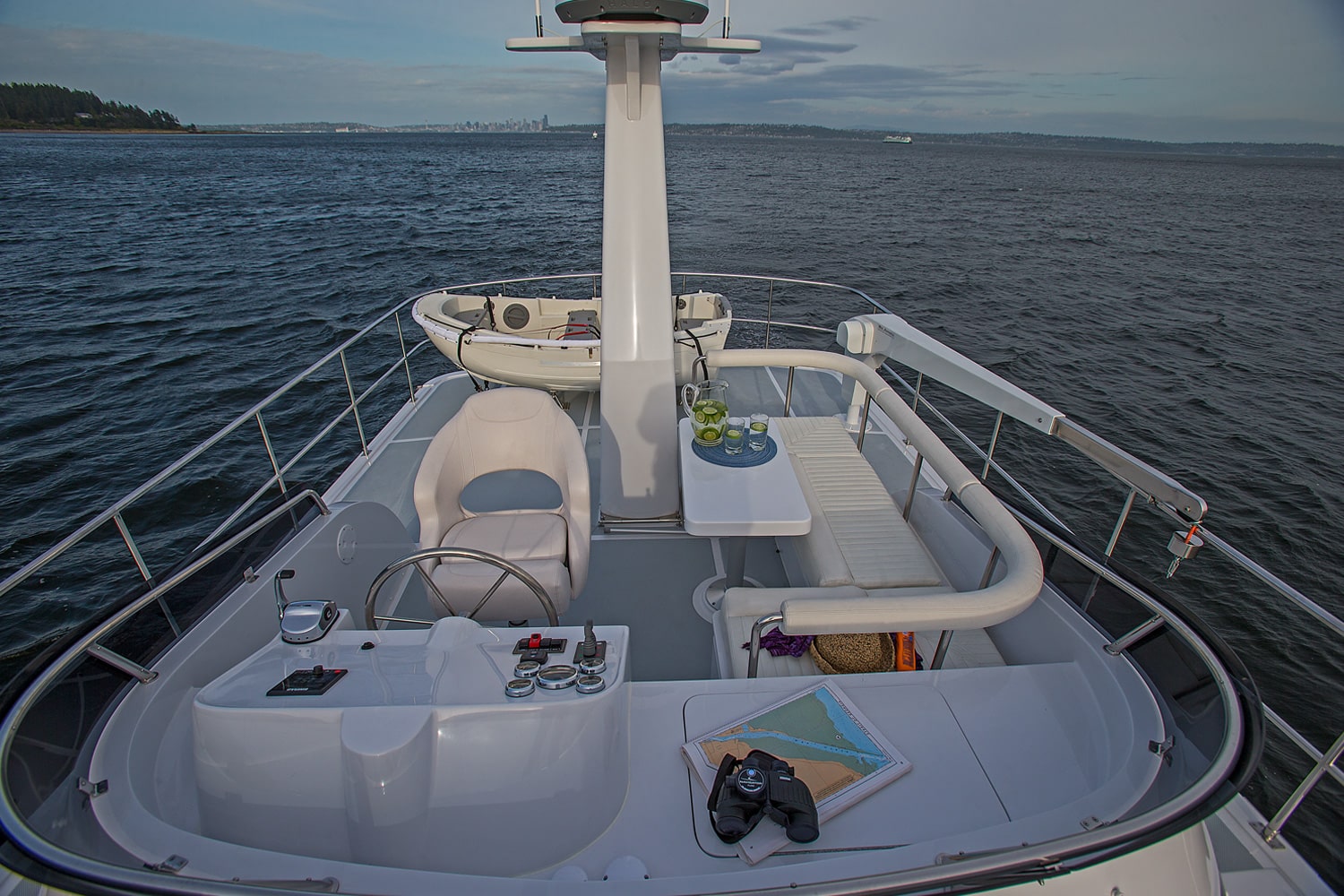

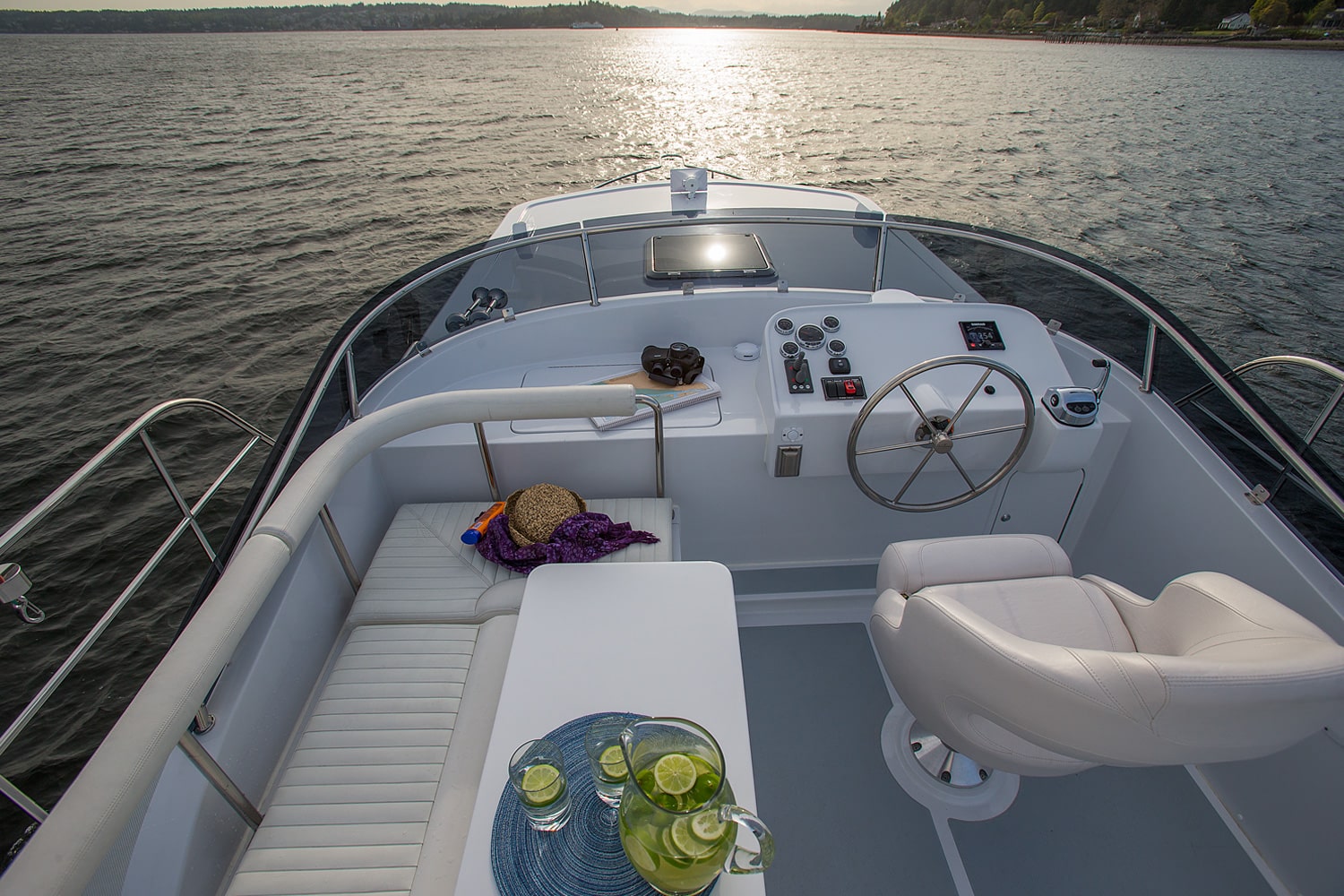

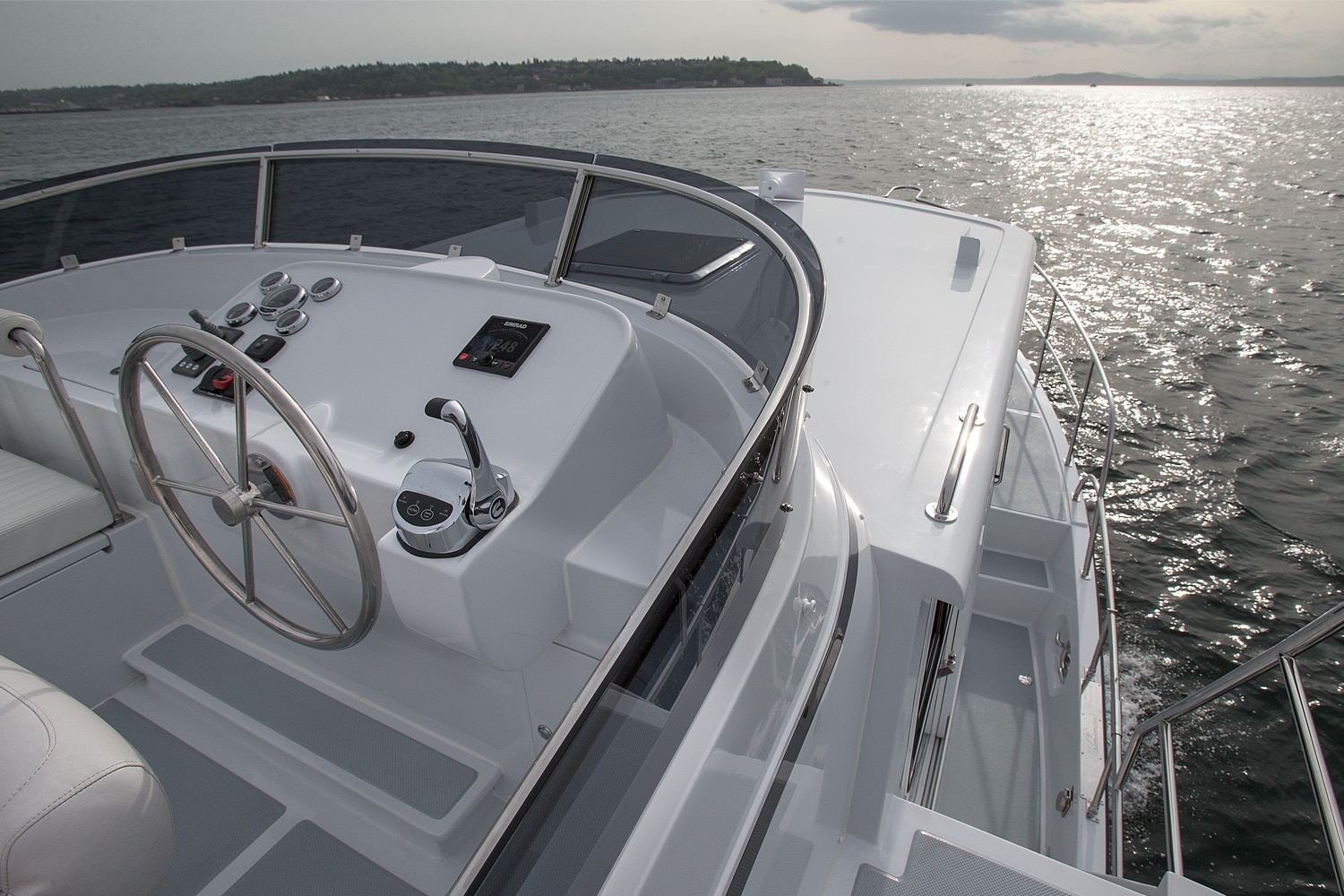

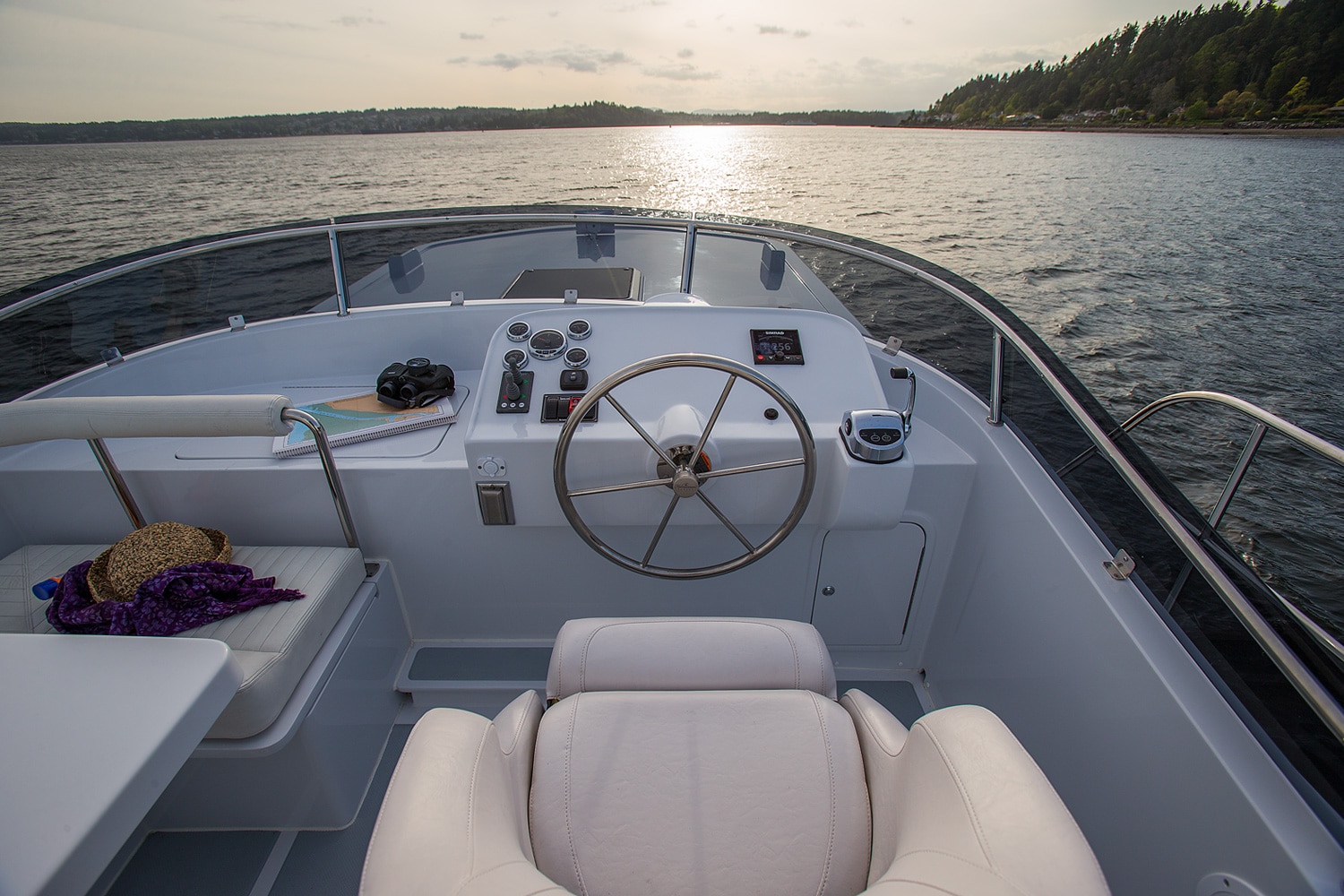

- Flybridge control center with stainless steel wheel
- Lazarette storage compartment
- Flybridge L-shaped settee
- LED navigation lights
- Dual-trumpet electric horn
- Pedestal helm seat on flybridge (1)
- Radar mast with hinge or radar arch with hinges
- Three pantographic windshield wipers
- Stainless steel handrail on transom
- Seahawk epoxy barrier coating and bottom paint
- Seahawk Barnacle Blocker on underwater metal
Machinery & Systems

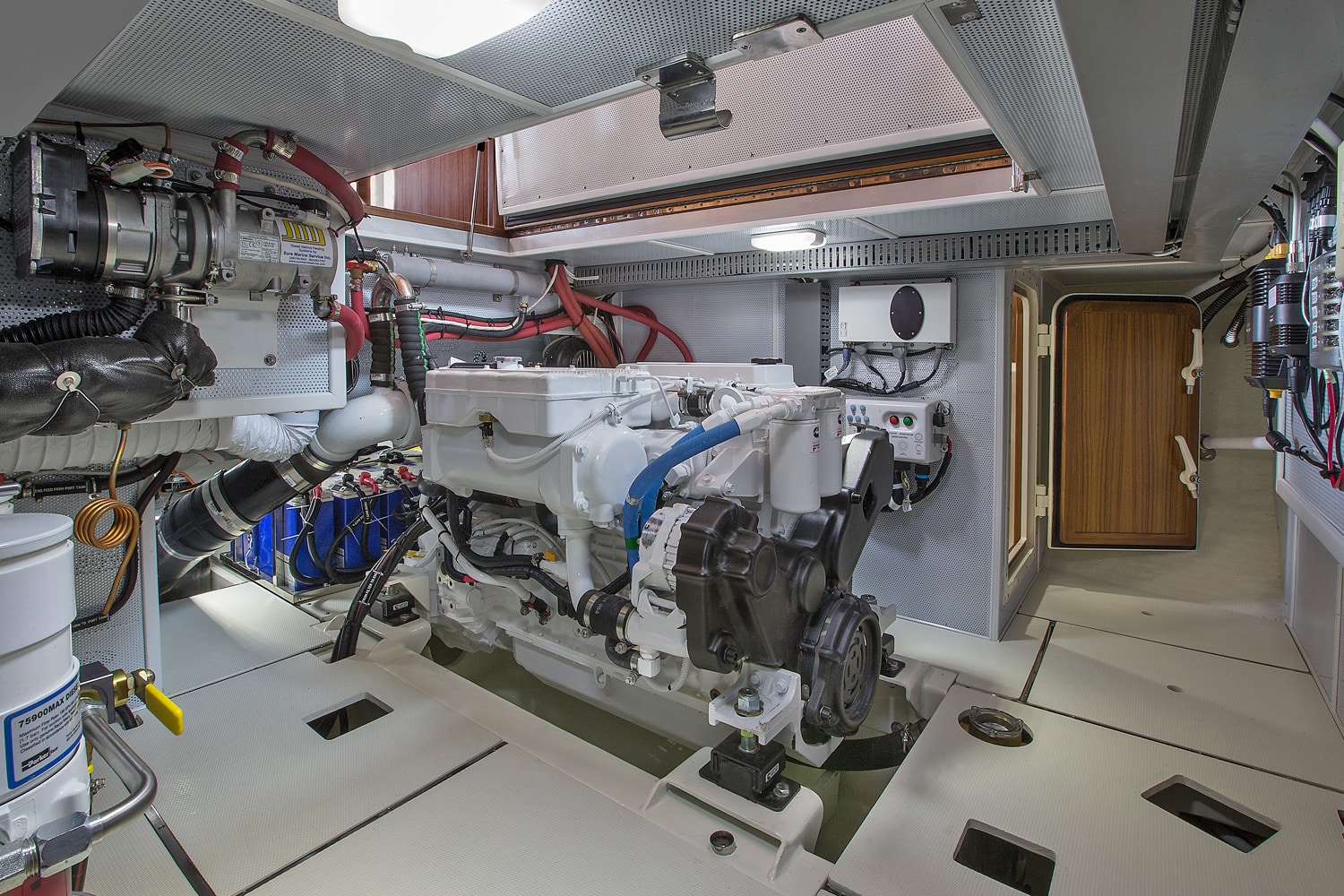

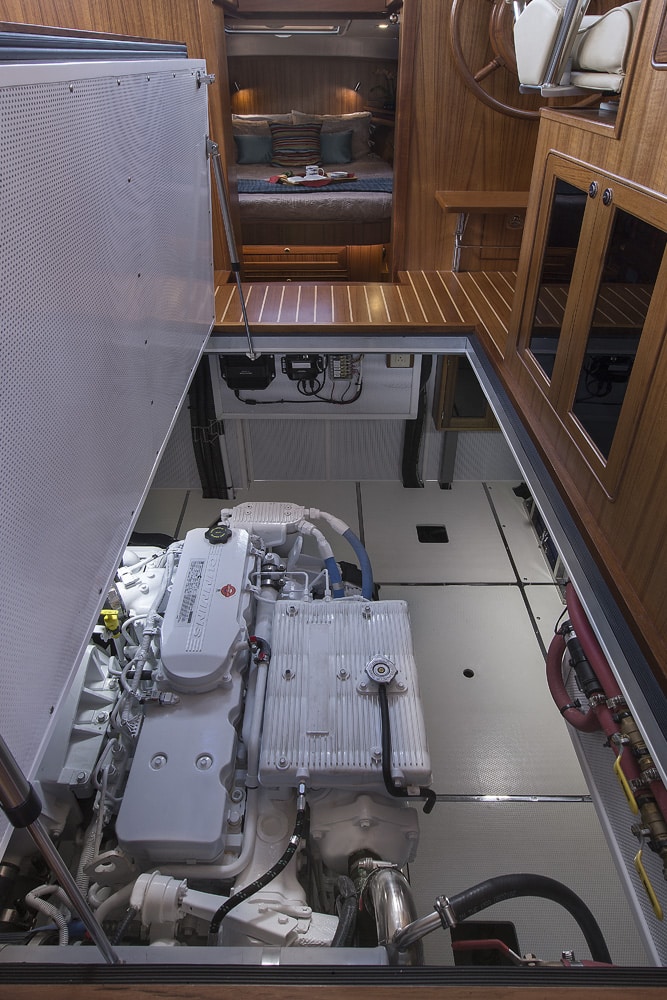

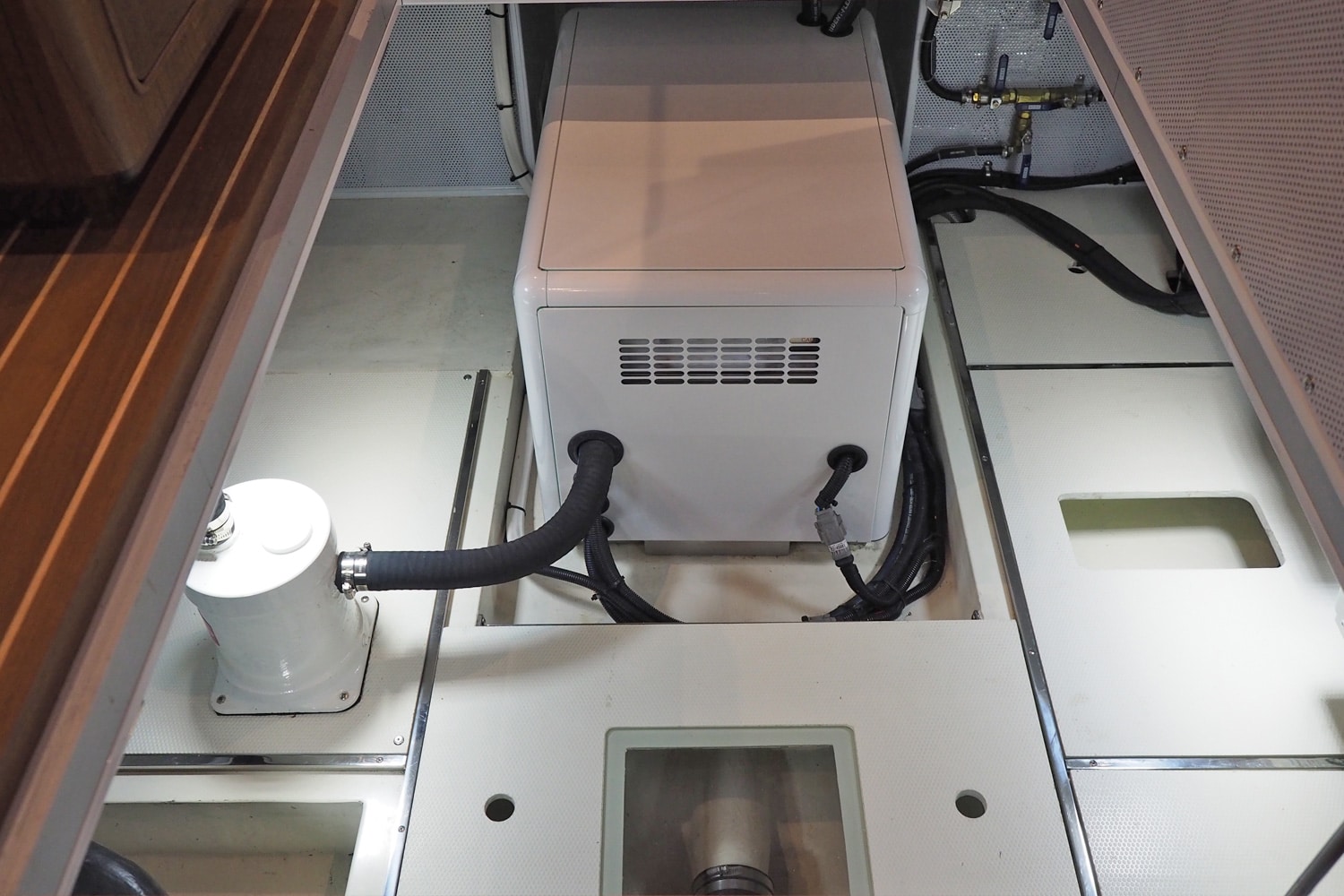

Engine Room

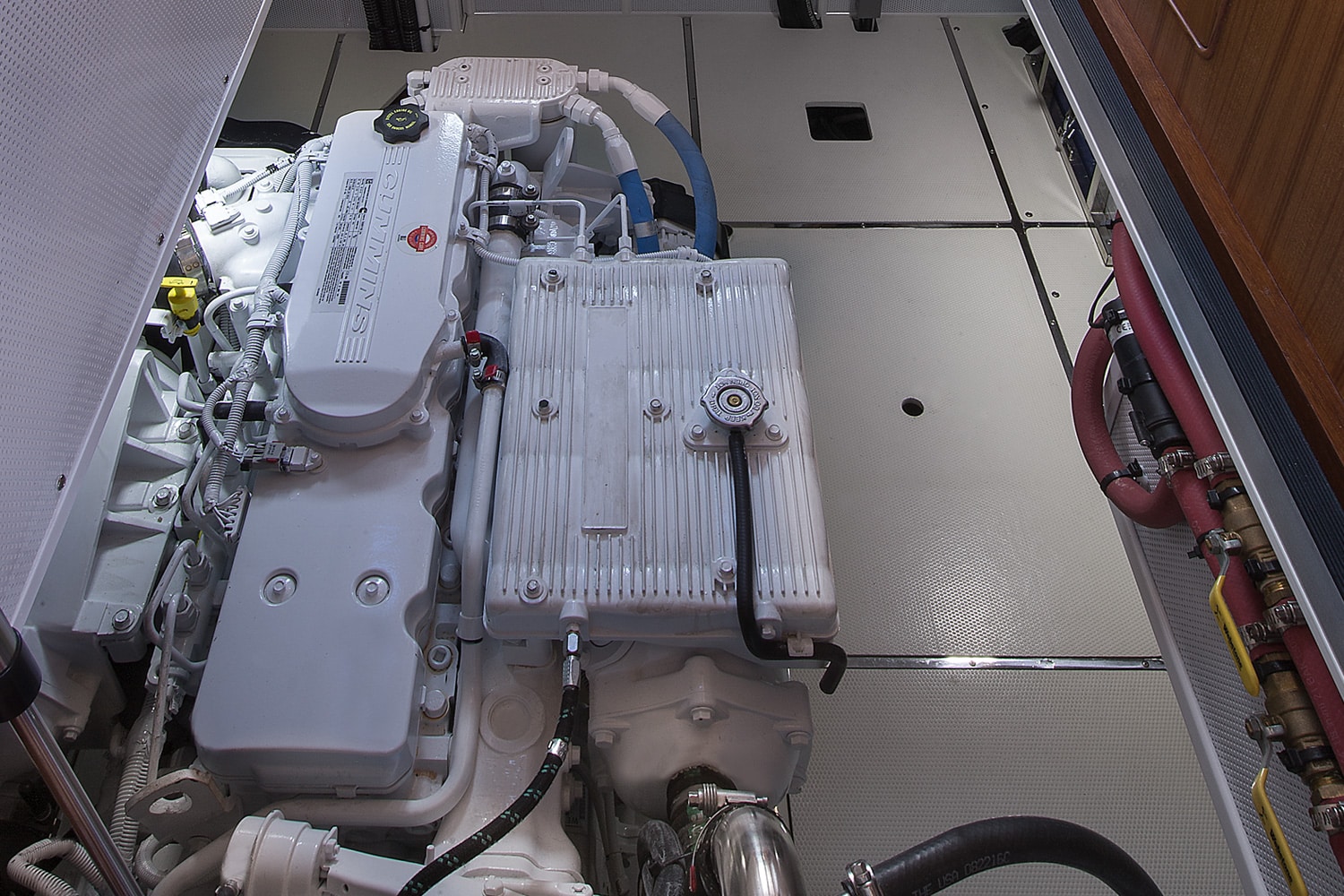

- Cummins QSB 6.7 liter 380 hp electronically controlled common-rail diesel engine
- Dual Racor or Griffin fuel filters
- PYI Dripless-type prop shaft seal with inspection window
- Tides Marine rudder shaft seals
- Sea Star hydraulic steering system with autopilot hydraulic steering taps installed
- Electric bilge pumps (3) with automatic switches and high water bilge alarm
- Shower sump pump
- Hinged interior floor hatches with gas stays
- Removable deck plates throughout engine room
- Tool / storage cabinet
Electrical

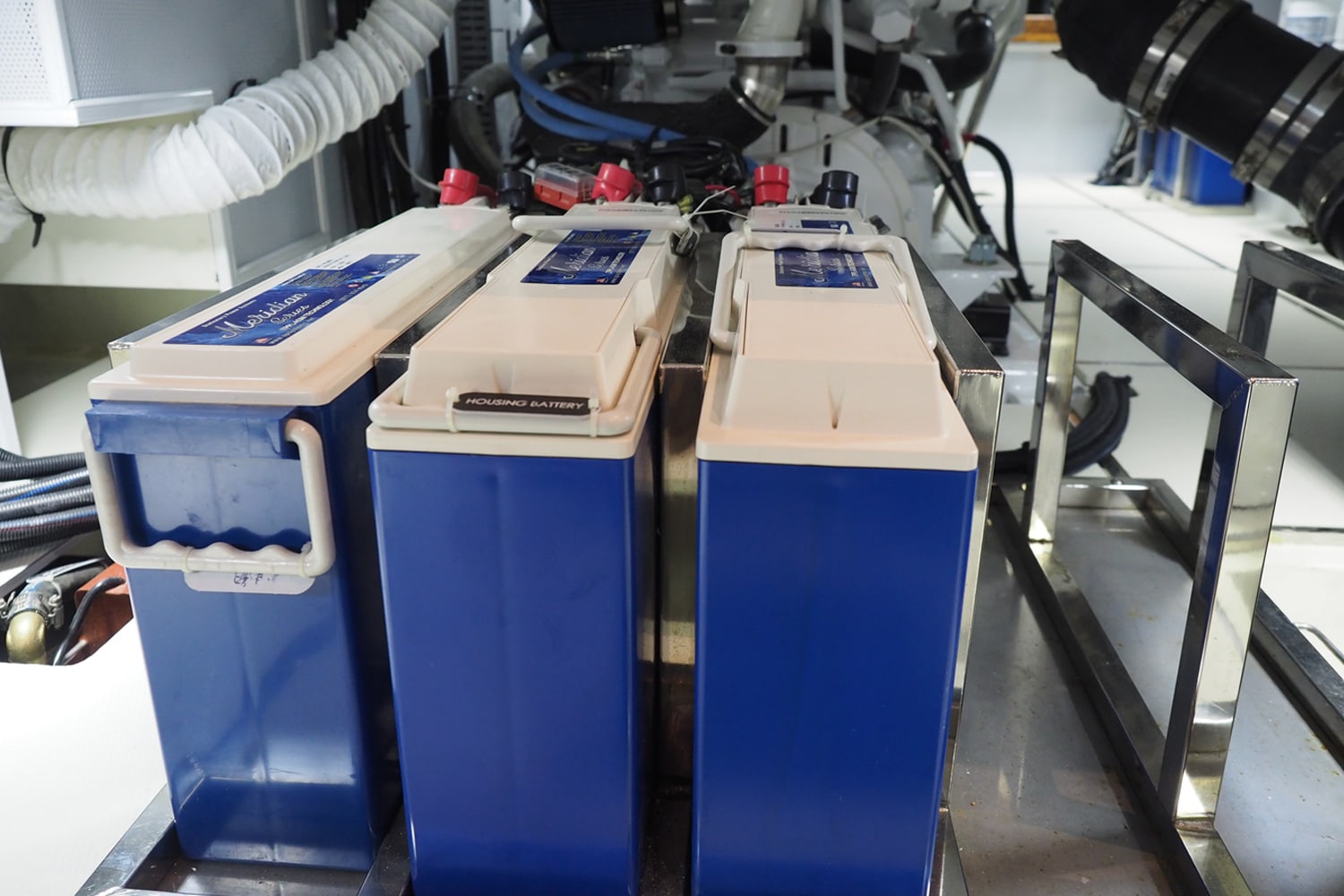

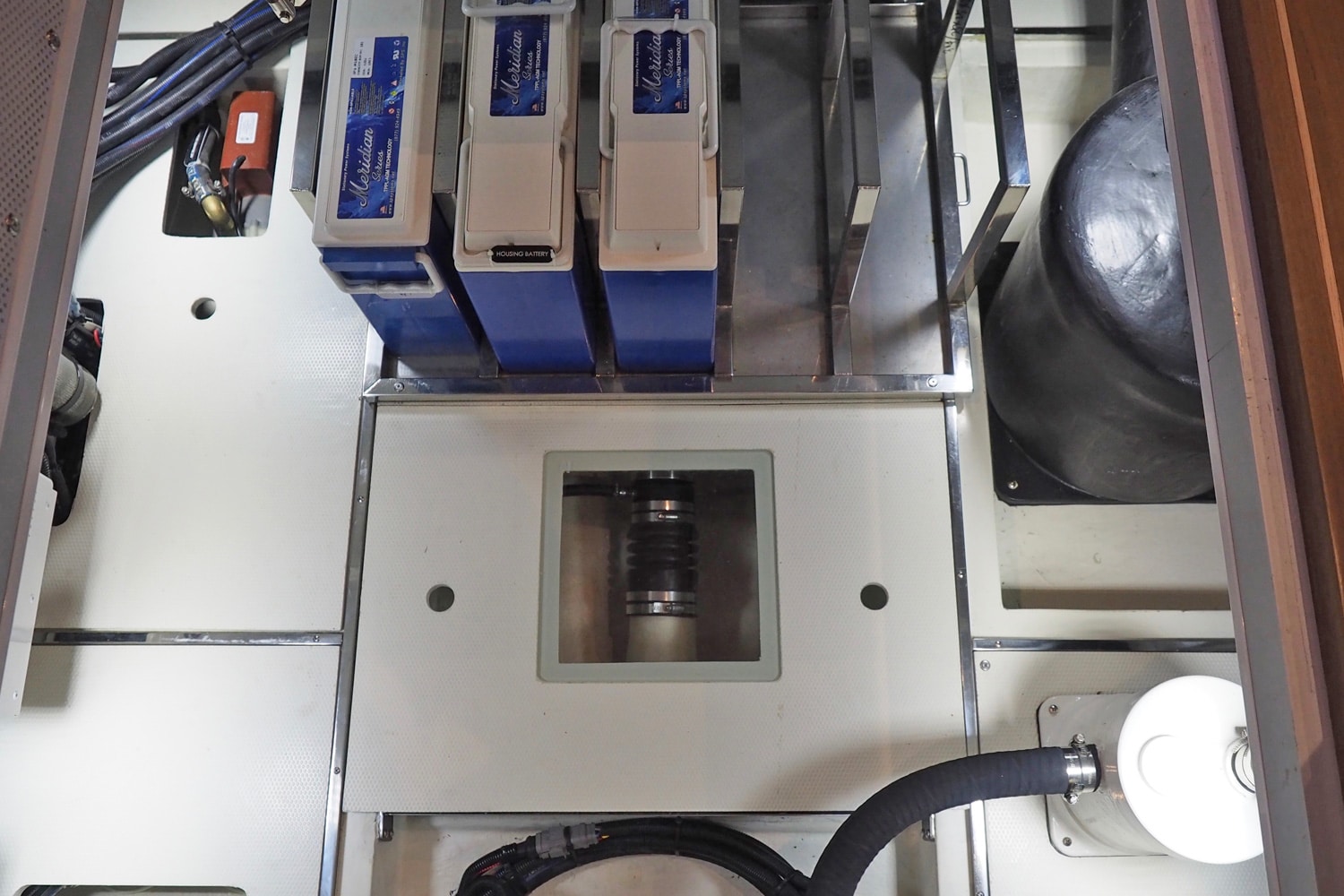

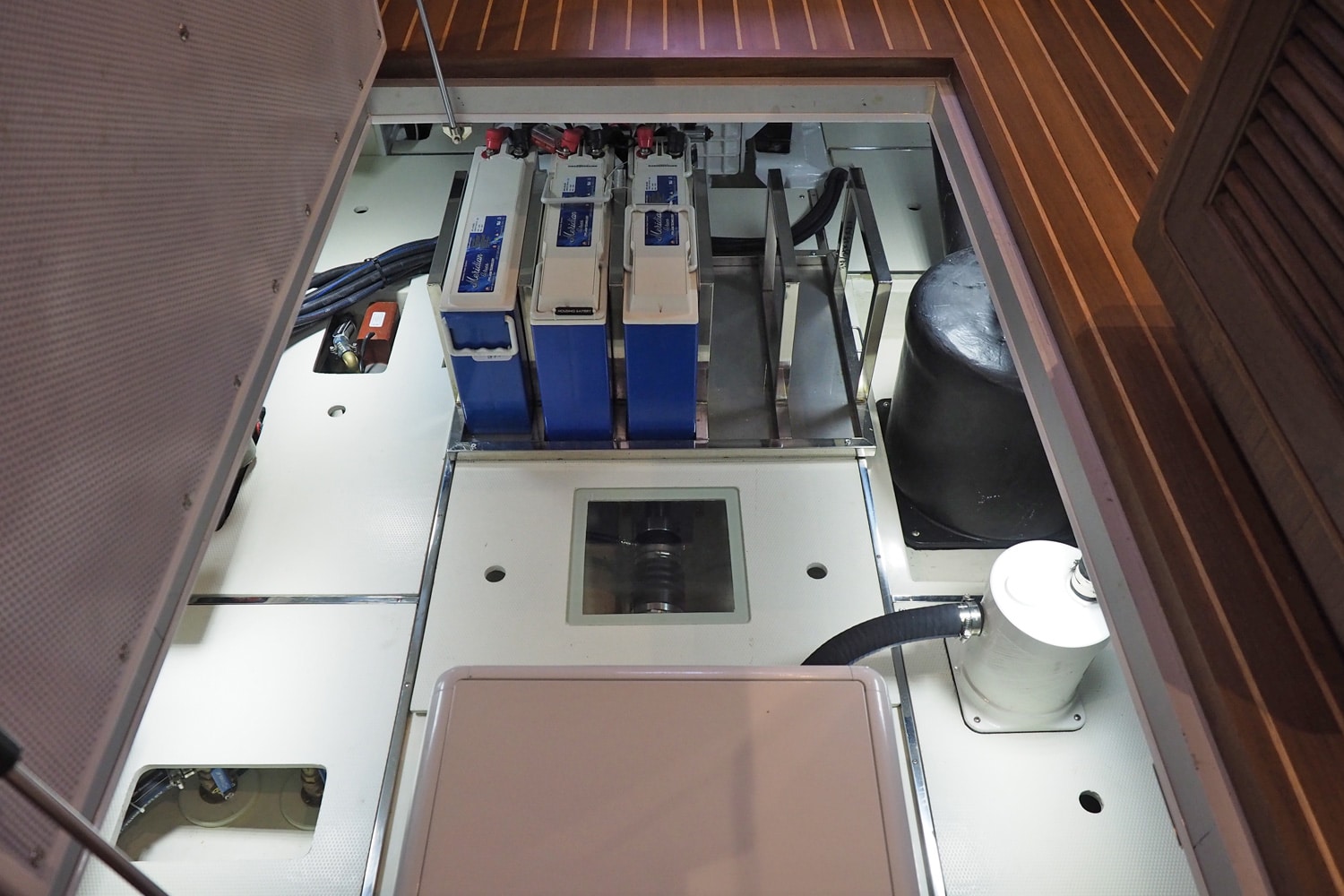

- Victron 200 A-hr AGM house batteries (2); AGM bow thruster battery (1)
- AGM start battery (1)
- Victron inverter/charger
- Blue Sea Systems remote battery switches and automatic charge relays
- SmartPlug 30 amp shorepower inlets (2) on transom
- Victron isolation transformers (2)
- Blue Sea Systems electrical (AC/DC) distribution panel
- Bonding system with anodes
Domestic Systems

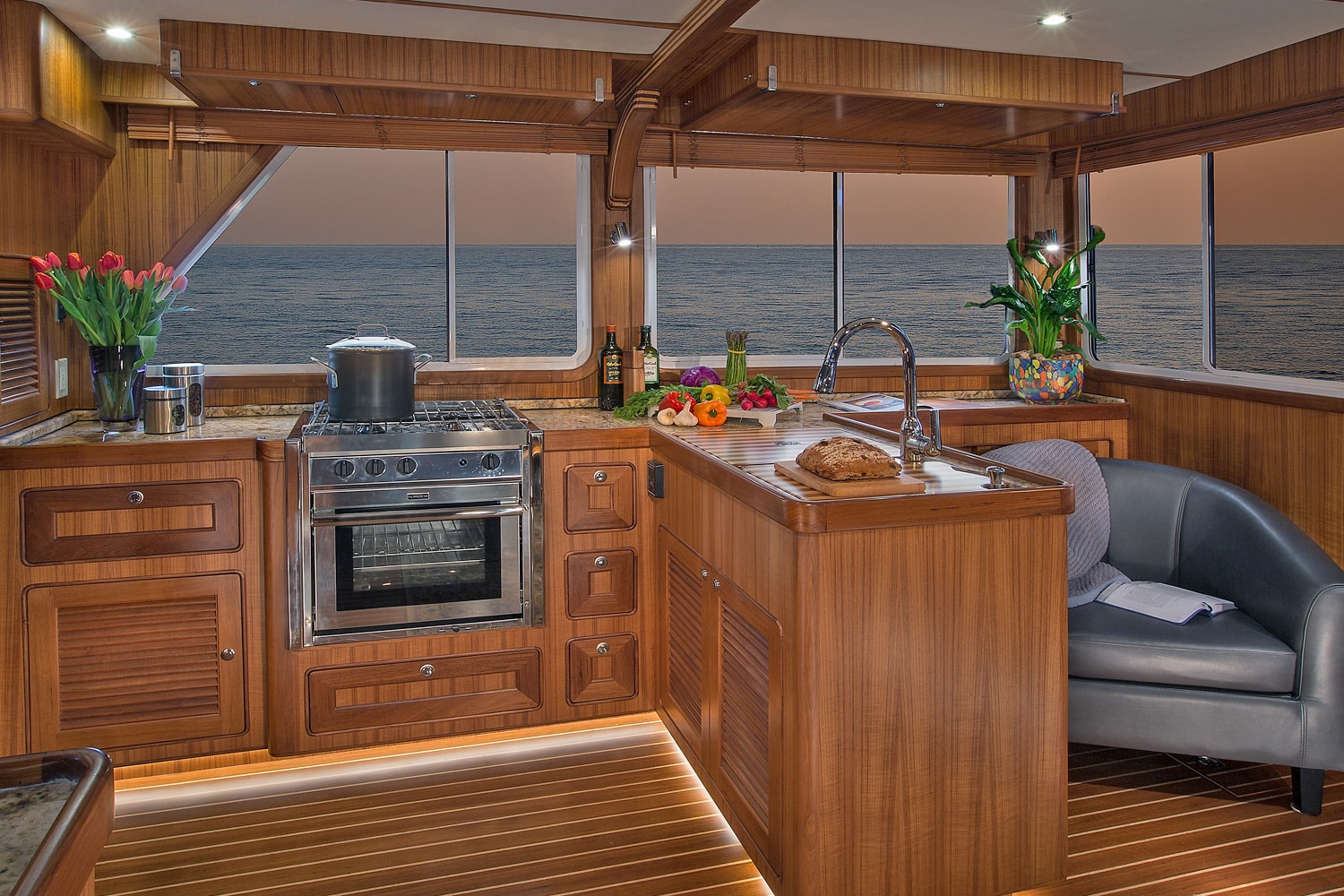

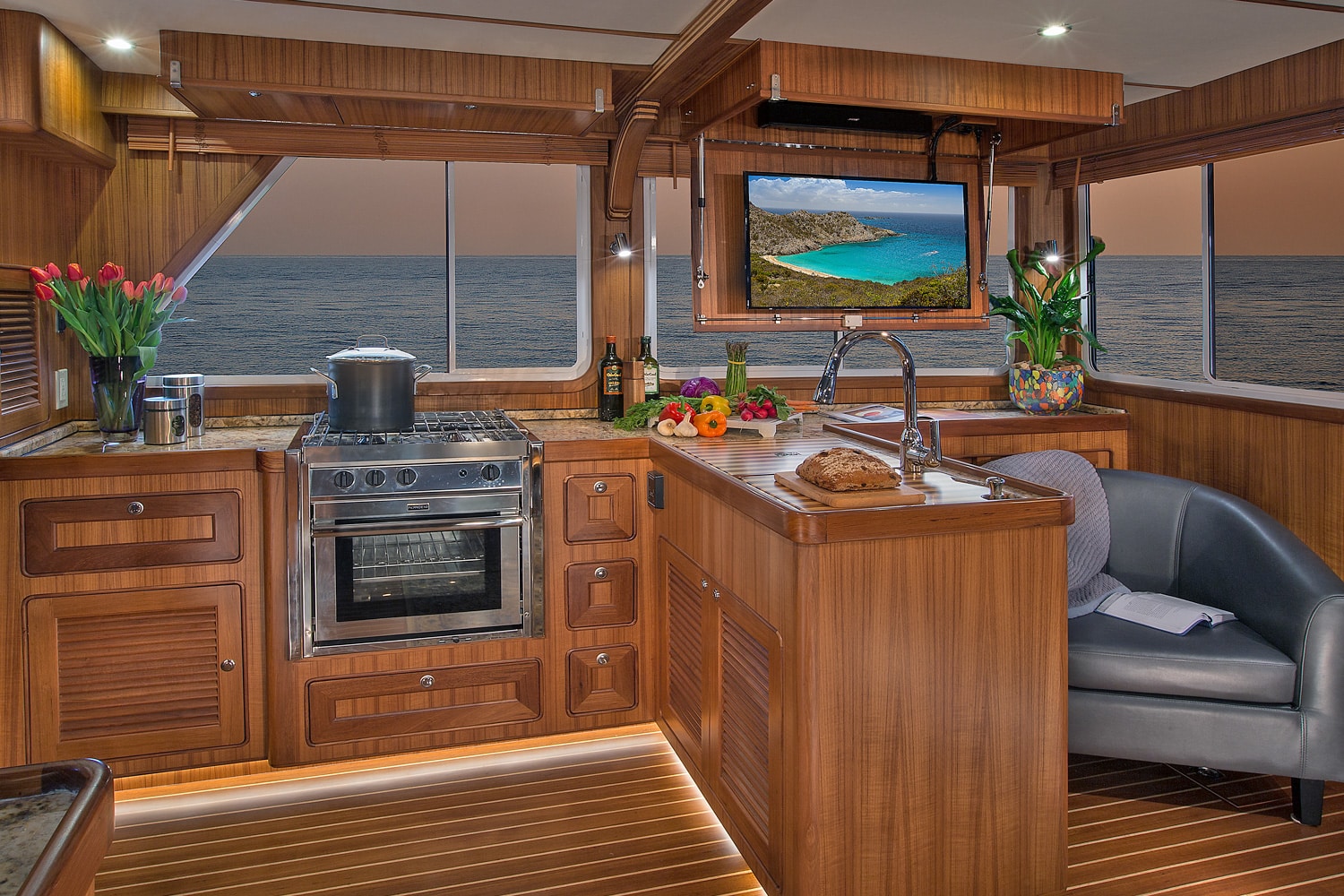

- Force 10 galley range – propane or electric; microwave
- Nova Kool 9 cu. ft. refrigerator/freezer
- Webasto Air Top 55 cabin heating system (or credit toward optional reverse-cycle heating/cooling system)
- Raritan Elegance macerating-type electric heads (2)
- Macerator overboard pump with through-hull fitting
- Marco variable speed potable water pump
- 17 gallon, Torrid electric hot water heater
- Cockpit shower (hot and cold)
Options / Other Additions
We welcome the opportunity to discuss the options, accessories and customization available for this model. The list of equipment and features which may be presented below, may not be the complete inventory of features and equipment available to this model. Contact a Boston Yacht sales agent to discuss your interests in this model and how may assist you in outfitting the boat to your specific requirements.A wide range of options and customizations including: engine brand and horsepower selections, generators, galley appliances, exterior gel coat colors, upholstery and granite choices, custom cabinetry, bridge layouts, and more.
Miscellaneous
- Lines, fenders, shore power cable, and USCG safety equipment included –
- Delivery and commissioning in Seattle WA or Charleston, SC. Subsequent transportation may be additional
